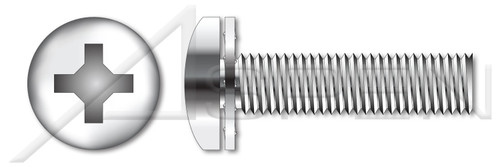

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #2
- Thread Pitch: 56
- Diameter (Dimension): 0.086"
- Length (Nominal): 3/8"
- Thread Length (Nominal): 0.375"
- Outside Diameter (Minimum): 0.175"
- Outside Diameter (Maximum): 0.185"
- Thickness (Minimum): 0.010"
- Thickness (Maximum): 0.016"
- Drive Recess Size: #1
- Drive Recess Width: 0.097"
- Drive Recess Depth (Minimum): 0.034"
- Drive Recess Depth (Maximum): 0.052"
- Head Diameter (Minimum): 0.155"
- Head Diameter (Maximum): 0.167"
- Head Height, Overall (Minimum): 0.053"
- Head Height, Overall (Maximum): 0.062"
- Head Radius: 0.010"
- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
- Head Style: Pan Head
- Head Style Detail: Free-Spinning 410 Stainless Steel Internal Tooth Lock Washer
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.13
- Brand:
- Aspen Fasteners
- Form and Design:
- SEMS Screws Pre-Assembled with a Captive Lock Washer
- Head Style:
- Pan Head
- Head Style Detail:
- Free-Spinning 410 Stainless Steel Internal Tooth Lock Washer
- Drive Style:
- Cruciform Recess Drive
- Drive Detail:
- Phillips Type H
- Thread Length:
- Full Thread
- Thread Direction:
- Right-Hand Thread
- Material:
- Stainless Steel
- Shop by System of Measurement:
- Inch
- Shop by Material:
- Stainless Steel
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Category:
- Machine Screws
- System of Measurement:
- Inch
- Material Grade:
- 18-8 Stainless Steel
- Coating:
- Uncoated
- Standards and Specifications:
- ASME B18.13
- Diameter (Nominal):
- #2
- Diameter (Dimension):
- 0.086"
- Thread Pitch:
- 56
- Length (Nominal):
- 3/8"
- POS:
- ST115-256X38-005000,ST115-N256X38-000500
- Brand:
- Aspen Fasteners(r)
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ST115-256X38
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ST115-256X38.zip
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product46/ST115-256X38.PDF
- Head Diameter (Maximum):
- 0.167"
- Thread Length (Nominal):
- 0.375"
- Thickness (Minimum):
- 0.010"
- Drive Recess Size:
- #1
- Drive Recess Depth (Minimum):
- 0.034"
- Outside Diameter (Maximum):
- 0.185"
- Drive Recess Depth (Maximum):
- 0.052"
- Origin:
- Origin Undefined
- Thickness (Maximum):
- 0.016"
- Outside Diameter (Minimum):
- 0.175"
- Head Diameter (Minimum):
- 0.155"
- Head Height, Overall (Minimum):
- 0.053"
- Head Height, Overall (Maximum):
- 0.062"
- Drive Recess Width:
- 0.097"
-
Description
- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #2
- Thread Pitch: 56
- Diameter (Dimension): 0.086"
- Length (Nominal): 3/8"
- Thread Length (Nominal): 0.375"
- Outside Diameter (Minimum): 0.175"
- Outside Diameter (Maximum): 0.185"
- Thickness (Minimum): 0.010"
- Thickness (Maximum): 0.016"
- Drive Recess Size: #1
- Drive Recess Width: 0.097"
- Drive Recess Depth (Minimum): 0.034"
- Drive Recess Depth (Maximum): 0.052"
- Head Diameter (Minimum): 0.155"
- Head Diameter (Maximum): 0.167"
- Head Height, Overall (Minimum): 0.053"
- Head Height, Overall (Maximum): 0.062"
- Head Radius: 0.010"
- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
- Head Style: Pan Head
- Head Style Detail: Free-Spinning 410 Stainless Steel Internal Tooth Lock Washer
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.13
-
3D Product View
