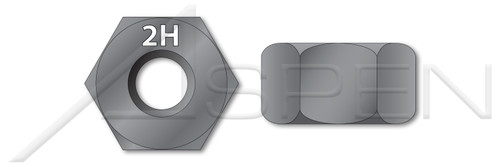

3/4"-10 Hex Heavy Nuts, Chamfered One Side, Washer Faced, Grade 2H Steel, Plain, ASTM A194

PART NUMBER:
NU153-3410-000250
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Heavy hex nuts are thicker and have a larger across flats as compared to regular nuts.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 3/4"
  • Thread Pitch: 10
  • Diameter (Dimension): 0.75"
  • Thread Length (Nominal): 0.734"
  • Across Flats (Basic): 1-1/4"
  • Across Flats (Minimum): 1.212"
  • Across Flats (Maximum): 1.25"
  • Height (Basic): 47/64"
  • Height (Minimum): 0.71"
  • Height (Maximum): 0.758"
PRODUCT ATTRIBUTES
  • Category: Hex Heavy Nuts
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: Chamfered One Side, Washer Faced
  • Drive Style: External Hex Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Grade 2H
  • Coating: Uncoated
  • Standards and Specifications: ASTM A194
Product UPC Code:
698435274167
Height (Basic):
47/64"
Coating:
Uncoated
Order:
Nuts
Material:
Steel
Standards and Specifications:
ASTM A194
Across Flats (Minimum):
1.212"
System of Measurement:
Inch
Height (Maximum):
0.758"
Thread Pitch:
10
Thread Direction:
Right-Hand Thread
Brand:
Aspen Fasteners
Height (Minimum):
0.71"
Category:
Hex Heavy Nuts
Thread Length:
Full Thread
Thread Length (Nominal):
0.734"
Diameter (Dimension):
0.75"
Across Flats (Basic):
1-1/4"
Form and Design:
Chamfered One Side, Washer Faced
Shop by Material:
Steel
Drive Style:
External Hex Drive
Across Flats (Maximum):
1.25"
Diameter (Nominal):
3/4"
Shop by System of Measurement:
Inch
Product Class:
Internally Threaded Fasteners
Material Grade:
Grade 2H
  • Description
    • Heavy hex nuts are thicker and have a larger across flats as compared to regular nuts.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 3/4"
    • Thread Pitch: 10
    • Diameter (Dimension): 0.75"
    • Thread Length (Nominal): 0.734"
    • Across Flats (Basic): 1-1/4"
    • Across Flats (Minimum): 1.212"
    • Across Flats (Maximum): 1.25"
    • Height (Basic): 47/64"
    • Height (Minimum): 0.71"
    • Height (Maximum): 0.758"
    PRODUCT ATTRIBUTES
    • Category: Hex Heavy Nuts
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: Chamfered One Side, Washer Faced
    • Drive Style: External Hex Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Grade 2H
    • Coating: Uncoated
    • Standards and Specifications: ASTM A194
    Product UPC Code:
    698435274167
