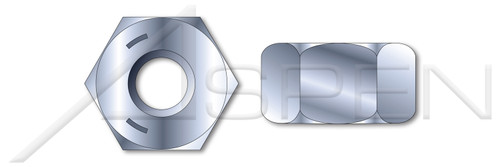

- Heavy hex nuts are thicker and have a larger across flats as compared to regular nuts.
- The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
- Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
- Diameter (Nominal): 3/4"
- Thread Pitch: 10
- Diameter (Dimension): 0.75"
- Thread Length: 0.734"
- Across Flats (Basic): 1-1/4"
- Across Flats (Minimum): 1.212"
- Across Flats (Maximum): 1.25"
- Height (Basic): 47/64"
- Height (Minimum): 0.71"
- Height (Maximum): 0.758"
- Product Class: Internally Threaded Fasteners
- Order: Nuts
- Category: Hex Heavy Nuts
- System of Measurement: Inch
- Brand: Aspen Fasteners®
- Drive Style: External Hex Drive
- Pitch: UNC Coarse Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Grade 5 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: ASME B18.2.2 and SAE J995
