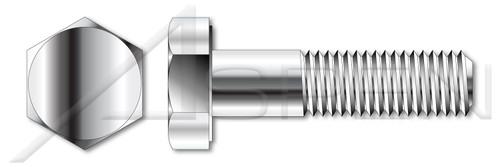

3/8"-16 X 2" Hex Head Cap Screws Bolts, AISI 316L Stainless Steel

PART NUMBER:
ST314-3816X2-000030
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
Buy in bulk and save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • The washer face under the head provides a precision bearing surface.
  • The chamfered point improves engagement with a nut or pre-tapped hole.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 3/8"
  • Thread Pitch: 16
  • Diameter (Dimension): 0.375"
  • Diameter (Minimum): 0.369"
  • Diameter (Maximum): 0.375"
  • Length (Nominal): 2"
  • Thread Length (Nominal): 1"
  • Across Flats (Basic): 9/16"
  • Across Flats (Minimum): 0.551"
  • Across Flats (Maximum): 0.562"
  • Head Height, Overall: 0.2344"
  • Head Height, Overall (Minimum): 0.226"
  • Head Height, Overall (Maximum): 0.243"
PRODUCT ATTRIBUTES
  • Category: Cap Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Hex Head
  • Head Style Detail: Washer Face
  • Drive Style: External Hex Drive
  • Thread Direction: Right-Hand Thread
  • Point: Chamfered Point
  • Material: Stainless Steel
  • Material Grade: AISI 316L Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: ASME B18.2.1
Product UPC Code:
698435739352
Buy in bulk and save
Order:
Machine Thread Fasteners
Brand:
Aspen Fasteners(r)
Head Style Detail:
Washer Face
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ST314-3816X2
Point:
Chamfered Point
Head Height, Overall:
0.2344"
Diameter (Dimension):
0.375"
Thread Pitch:
16
Head Style:
Hex Head
Length (Nominal):
2"
Diameter (Maximum):
0.375"
Across Flats (Basic):
9/16"
System of Measurement:
Inch
Head Height, Overall (Minimum):
0.226"
Standards and Specifications:
ASME B18.2.1
Shop by System of Measurement:
Inch
Across Flats (Maximum):
0.562"
Product Class:
Externally Threaded Fasteners
Head Height, Overall (Maximum):
0.243"
Material:
Stainless Steel
Material Grade:
AISI 316L Stainless Steel
Across Flats (Minimum):
0.551"
Drive Style:
External Hex Drive
Diameter (Nominal):
3/8"
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product78/ST314-3816X2.PDF
Category:
Cap Screws
Shop by Material:
Stainless Steel
Coating:
Uncoated
Thread Length (Nominal):
1"
POS:
ST314-3816X2-000030
Thread Direction:
Right-Hand Thread
Diameter (Minimum):
0.369"
  • Description
    • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • The washer face under the head provides a precision bearing surface.
    • The chamfered point improves engagement with a nut or pre-tapped hole.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 3/8"
    • Thread Pitch: 16
    • Diameter (Dimension): 0.375"
    • Diameter (Minimum): 0.369"
    • Diameter (Maximum): 0.375"
    • Length (Nominal): 2"
    • Thread Length (Nominal): 1"
    • Across Flats (Basic): 9/16"
    • Across Flats (Minimum): 0.551"
    • Across Flats (Maximum): 0.562"
    • Head Height, Overall: 0.2344"
    • Head Height, Overall (Minimum): 0.226"
    • Head Height, Overall (Maximum): 0.243"
    PRODUCT ATTRIBUTES
    • Category: Cap Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Hex Head
    • Head Style Detail: Washer Face
    • Drive Style: External Hex Drive
    • Thread Direction: Right-Hand Thread
    • Point: Chamfered Point
    • Material: Stainless Steel
    • Material Grade: AISI 316L Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: ASME B18.2.1
    Product UPC Code:
    698435739352

Contact us for availability information on part number ST314-3816X2-000030. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
