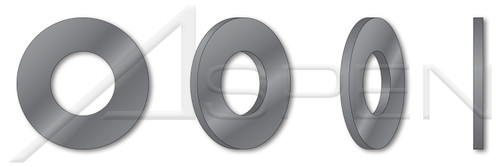

3/8" Flat Washers, SAE Pattern, Steel, Plain

3/8" Flat Washers, SAE Pattern, Steel, Plain

PART NUMBER:
WA016-38-000050
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • SAE flat washer dimensions were developed by the Society of Automotive Engineers.
  • The nominal diameter is the bolt size to use for this flat washer.

Approximate number of pieces per 50 lbs.: 7,000 pieces.

  • Diameter (Nominal): 3/8"
  • Inside Diameter (Nominal): 13/32"
  • Inside Diameter (Minimum): 0.401"
  • Inside Diameter (Maximum): 0.419"
  • Outside Diameter (Nominal): 13/16"
  • Outside Diameter (Minimum): 0.805"
  • Outside Diameter (Maximum): 0.827"
  • Thickness (Nominal): 1/16"
  • Thickness (Minimum): 0.051"
  • Thickness (Maximum): 0.08"
  • Product Class: Washers
  • Order: Flat Washers
  • Category: Standard Flat Washers
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: SAE Flat Washer Dimensions
  • Material: Steel
  • Coating: Uncoated
  • Standards and Specifications: ASME B18.21.1-2009
Product UPC Code:
698435822412
Coating:
Uncoated
Thickness (Maximum):
0.08"
Thickness (Minimum):
0.051"
Thickness (Nominal):
1/16"
Outside Diameter (Maximum):
0.827"
Outside Diameter (Minimum):
0.805"
Outside Diameter (Nominal):
13/16"
Inside Diameter (Maximum):
0.419"
Inside Diameter (Minimum):
0.401"
Inside Diameter (Nominal):
13/32"
Diameter (Nominal):
3/8"
Standards and Specifications:
ASME B18.21.1-2009
System of Measurement:
Inch
Material:
Steel
Form and Design:
SAE Flat Washer Dimensions
Brand:
Aspen Fasteners
Steel:
Steel
Product Class:
Washers
Order:
Flat Washers
Category:
Standard Flat Washers
  • Description
    • SAE flat washer dimensions were developed by the Society of Automotive Engineers.
    • The nominal diameter is the bolt size to use for this flat washer.

    Approximate number of pieces per 50 lbs.: 7,000 pieces.

    • Diameter (Nominal): 3/8"
    • Inside Diameter (Nominal): 13/32"
    • Inside Diameter (Minimum): 0.401"
    • Inside Diameter (Maximum): 0.419"
    • Outside Diameter (Nominal): 13/16"
    • Outside Diameter (Minimum): 0.805"
    • Outside Diameter (Maximum): 0.827"
    • Thickness (Nominal): 1/16"
    • Thickness (Minimum): 0.051"
    • Thickness (Maximum): 0.08"
    • Product Class: Washers
    • Order: Flat Washers
    • Category: Standard Flat Washers
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: SAE Flat Washer Dimensions
    • Material: Steel
    • Coating: Uncoated
    • Standards and Specifications: ASME B18.21.1-2009
    Product UPC Code:
    698435822412
