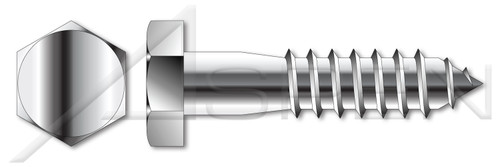

3/8" X 5" Hex Head Lag Screw Bolts, AISI 316 Stainless Steel

PART NUMBER:
ST241-38X5-000100
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Also known as a coach screws or heavy wood screws.
  • Interchangeably referred to as lag screws or lag bolts.
  • Used in heavy lumber applications, or in masonry when used with lag shields.
  • Type 316 stainless steel is considered "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 3/8"
  • Thread Pitch: 7
  • Diameter (Dimension): 0.375"
  • Length (Nominal): 5"
  • Thread Length (Nominal): 3"
  • Across Flats (Basic): 9/16"
  • Head Height, Overall: 0.25"
  • Shoulder Diameter: 3/8"
  • Shoulder Diameter (Minimum): 0.36"
  • Shoulder Diameter (Maximum): 0.388"
  • Shoulder Length: 0.125"
PRODUCT ATTRIBUTES
  • Category: Lag Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Hex Head
  • Drive Style: External Hex Drive
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: AISI 316 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: ASME B18.2.1 and SAE J429
Product UPC Code:
692559829173
Drive Style:
External Hex Drive
Shoulder Diameter:
3/8"
Thread Direction:
Right-Hand Thread
Shoulder Diameter (Minimum):
0.36"
Across Flats (Basic):
9/16"
Standards and Specifications:
ASME B18.2.1 and SAE J429
Diameter (Dimension):
0.375"
Thread Length (Nominal):
3"
Material:
Stainless Steel
Head Style:
Hex Head
Shoulder Diameter (Maximum):
0.388"
Material Grade:
AISI 316 Stainless Steel
System of Measurement:
Inch
Thread Pitch:
7
Diameter (Nominal):
3/8"
Length (Nominal):
5"
Shop by System of Measurement:
Inch
Shoulder Length:
0.125"
Shop by Material:
Stainless Steel
Order:
Thread Cutting Fasteners
Category:
Lag Screws
Brand:
Aspen Fasteners
Coating:
Uncoated
Product Class:
Externally Threaded Fasteners
Head Height, Overall:
0.25"
  • Description
    • Also known as a coach screws or heavy wood screws.
    • Interchangeably referred to as lag screws or lag bolts.
    • Used in heavy lumber applications, or in masonry when used with lag shields.
    • Type 316 stainless steel is considered "marine grade".
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 3/8"
    • Thread Pitch: 7
    • Diameter (Dimension): 0.375"
    • Length (Nominal): 5"
    • Thread Length (Nominal): 3"
    • Across Flats (Basic): 9/16"
    • Head Height, Overall: 0.25"
    • Shoulder Diameter: 3/8"
    • Shoulder Diameter (Minimum): 0.36"
    • Shoulder Diameter (Maximum): 0.388"
    • Shoulder Length: 0.125"
    PRODUCT ATTRIBUTES
    • Category: Lag Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Hex Head
    • Drive Style: External Hex Drive
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: AISI 316 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: ASME B18.2.1 and SAE J429
    Product UPC Code:
    692559829173

Contact us for availability information on part number ST241-38X5-000100. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
