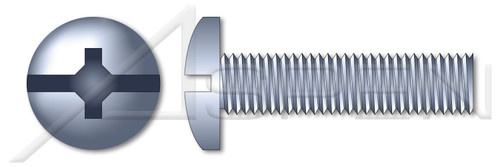

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #4
- Thread Pitch: 40
- Diameter (Dimension): 0.112"
- Length (Nominal): 5/8"
- Thread Length (Nominal): 0.625"
- Drive Recess Size: #1
- Drive Recess Width: 0.115"
- Drive Recess Depth (Minimum): 0.053"
- Drive Recess Depth (Maximum): 0.071"
- Head Diameter (Minimum): 0.205"
- Head Diameter (Maximum): 0.219"
- Head Height, Overall (Minimum): 0.070"
- Head Height, Overall (Maximum): 0.080"
- Head Radius: 0.010"
- Slot Depth (Minimum): 0.027"
- Slot Depth (Maximum): 0.040"
- Slot Width (Minimum): 0.031"
- Slot Width (Maximum): 0.039"
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Pan Head
- Drive Style: Cruciform/Slotted Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J82
