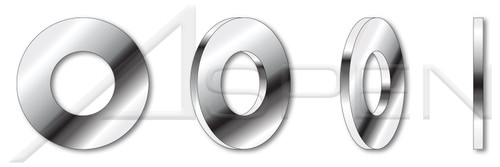

- SAE flat washer dimensions were developed by the Society of Automotive Engineers.
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #4
- Inside Diameter (Nominal): 1/8"
- Inside Diameter (Minimum): 0.12"
- Inside Diameter (Maximum): 0.133"
- Outside Diameter (Nominal): 5/16"
- Outside Diameter (Minimum): 0.307"
- Outside Diameter (Maximum): 0.32"
- Thickness (Nominal): 1/32"
- Thickness (Minimum): 0.025"
- Thickness (Maximum): 0.04"
PRODUCT ATTRIBUTES- Category: Standard Flat Washers
- System of Measurement: Inch
- Brand: Aspen Fasteners®
- Form and Design: SAE Flat Washer Dimensions
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: ASME B18.21.1-2009
