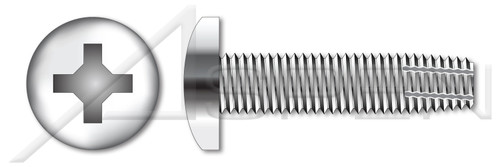

5/16"-18 X 1-1/4" Thread Cutting Screws, Type "F", Pan Phillips Drive, Stainless Steel

PART NUMBER:
ST137-51618X114-000650
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
  • Type F point screws have a machine screw thread and a blunt tapered point.
  • Ideal for use with heavy gauge sheet metal, zinc, cast iron and lead die castings.
  • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 5/16"
  • Thread Pitch: 18
  • Length (Nominal): 1-1/4"
PRODUCT ATTRIBUTES
  • Category: Thread Cutting Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Pan Head
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Point: Type "F"
  • Material: Stainless Steel
  • Material Grade: 18-8 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: ASME B18.6.3
Product UPC Code:
698435649743
Thread Length:
Full Thread
Category:
Thread Cutting Screws
Diameter (Nominal):
5/16"
Brand:
Aspen Fasteners
Standards and Specifications:
ASME B18.6.3
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ST137-51618X114
Product Class:
Externally Threaded Fasteners
Shop by Material:
Stainless Steel
Head Style:
Pan Head
Coating:
Uncoated
Material:
Stainless Steel
Point:
Type "F"
Length (Nominal):
1-1/4"
Drive Detail:
Phillips Type H
Thread Pitch:
18
Material Grade:
18-8 Stainless Steel
Drive Style:
Cruciform Recess Drive
Thread Direction:
Right-Hand Thread
Order:
Thread Cutting Fasteners
Shop by System of Measurement:
Inch
System of Measurement:
Inch
POS:
ST137-51618X114-000650
  • Description
    • Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
    • Type F point screws have a machine screw thread and a blunt tapered point.
    • Ideal for use with heavy gauge sheet metal, zinc, cast iron and lead die castings.
    • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 5/16"
    • Thread Pitch: 18
    • Length (Nominal): 1-1/4"
    PRODUCT ATTRIBUTES
    • Category: Thread Cutting Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Pan Head
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Point: Type "F"
    • Material: Stainless Steel
    • Material Grade: 18-8 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: ASME B18.6.3
    Product UPC Code:
    698435649743

Contact us for availability information on part number ST137-51618X114-000650. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
