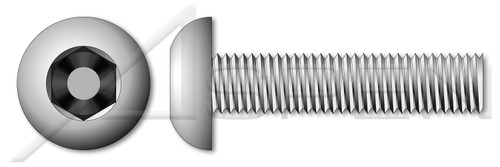

5/16"-18 X 3/4" Machine Screws, Button Head Tamper-Resistant Hex Socket Pin Drive, Stainless Steel, Includes Driver Bit

PART NUMBER:
TR034-51618X34316
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • Button head screws have a wider bearing surface and maintain a low head profile.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.

This item includes a high quality screwdriver insert bit matched for these tamper resistant screws.

DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 5/16"
  • Thread Pitch: 18
  • Diameter (Dimension): 0.313"
  • Length (Nominal): 3/4"
  • Drive Size: 3/16"
  • Head Diameter: 0.547"
  • Head Height, Overall: 0.166"
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Button Head
  • Drive Style: Tamper-Resistant Hex Socket Pin Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: AISI 302 Stainless Steel
  • Coating: Uncoated
  • Origin: Made in U.S.A.
Head Diameter:
0.547"
Brand:
Aspen Fasteners(r)
Thread Pitch:
18
Diameter (Dimension):
0.313"
Diameter (Nominal):
5/16"
Origin:
Made in U.S.A.
Coating:
Uncoated
Material Grade:
AISI 302 Stainless Steel
Shop by System of Measurement:
Inch
Shop by Material:
Stainless Steel
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Drive Style:
Tamper-Resistant Hex Socket Pin Drive
Head Style:
Button Head
Shop by Application:
Tamper-Resistant Security Fasteners
Shop by Application:
Socket Products
Recess Size:
3/16"
Head Height, Overall:
0.166"
Length (Nominal):
3/4"
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Machine Screws
System of Measurement:
Inch
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • Button head screws have a wider bearing surface and maintain a low head profile.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.

    This item includes a high quality screwdriver insert bit matched for these tamper resistant screws.

    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 5/16"
    • Thread Pitch: 18
    • Diameter (Dimension): 0.313"
    • Length (Nominal): 3/4"
    • Drive Size: 3/16"
    • Head Diameter: 0.547"
    • Head Height, Overall: 0.166"
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Button Head
    • Drive Style: Tamper-Resistant Hex Socket Pin Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: AISI 302 Stainless Steel
    • Coating: Uncoated
    • Origin: Made in U.S.A.
