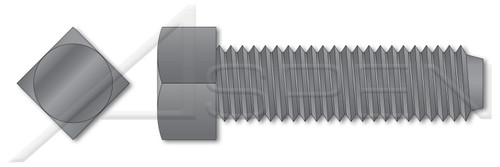

5/16"-18 X 5/8" Set Screws, Square Head, Cup Point, Alloy Steel, Hardened

PART NUMBER:
SO101-51618X58-003000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
Buy in bulk and save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Holds an object in place via friction between the point of the screw and the fastened material.
  • While similar to set screws with a hex recess drive, the square head allows for a wrench to be used.
  • Square head set screws are also known as grub screws.
  • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
  • Set screws are designed to be used under compressive stress only.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 5/16"
  • Thread Pitch: 18
  • Diameter (Dimension): 0.3125"
  • Length (Nominal): 5/8"
  • Thread Length (Nominal): 0.625"
  • Across Flats (Basic): 0.312"
  • Across Flats (Minimum): 0.302"
  • Across Flats (Maximum): 0.312"
  • Head Height, Overall (Minimum): 0.224"
  • Head Height, Overall (Maximum): 0.245"
  • Point Width (Minimum): 0.156"
  • Point Width (Maximum): 0.172"
PRODUCT ATTRIBUTES
  • Category: Set Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Square Head
  • Drive Style: External Square Drive
  • Pitch: Coarse Thread
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Point: Cup Point
  • Material: Steel
  • Material Grade: Alloy Steel
  • Material Processes: Through-Hardened
  • Coating: Uncoated
  • Hardness Rating: Rockwell C45-C53
  • Standards and Specifications: ASME B18.6.2
Product UPC Code:
698435904958
Buy in bulk and save
Point Width (Maximum):
0.172"
Shop by System of Measurement:
Inch
Point Width (Minimum):
0.156"
Diameter (Dimension):
0.3125"
Diameter (Nominal):
5/16"
Pitch:
Coarse Thread
Material Processes:
Through-Hardened
Standards and Specifications:
ASME B18.6.2
Across Flats (Minimum):
0.302"
Order:
Machine Thread Fasteners
Material Grade:
Alloy Steel
Drive Style:
External Square Drive
Head Height, Overall (Maximum):
0.245"
Length (Nominal):
5/8"
Coating:
Uncoated
Brand:
Aspen Fasteners(r)
Shop by Material:
Steel
Material:
Steel
Head Style:
Square Head
Point:
Cup Point
Across Flats (Maximum):
0.312"
Product Class:
Externally Threaded Fasteners
System of Measurement:
Inch
Head Height, Overall (Minimum):
0.224"
Hardness Rating:
Rockwell C45-C53
Thread Pitch:
18
Thread Direction:
Right-Hand Thread
Thread Length (Nominal):
0.625"
Thread Length:
Full Thread
Category:
Set Screws
Across Flats (Basic):
0.312"
  • Description
    • Holds an object in place via friction between the point of the screw and the fastened material.
    • While similar to set screws with a hex recess drive, the square head allows for a wrench to be used.
    • Square head set screws are also known as grub screws.
    • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
    • Set screws are designed to be used under compressive stress only.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 5/16"
    • Thread Pitch: 18
    • Diameter (Dimension): 0.3125"
    • Length (Nominal): 5/8"
    • Thread Length (Nominal): 0.625"
    • Across Flats (Basic): 0.312"
    • Across Flats (Minimum): 0.302"
    • Across Flats (Maximum): 0.312"
    • Head Height, Overall (Minimum): 0.224"
    • Head Height, Overall (Maximum): 0.245"
    • Point Width (Minimum): 0.156"
    • Point Width (Maximum): 0.172"
    PRODUCT ATTRIBUTES
    • Category: Set Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Square Head
    • Drive Style: External Square Drive
    • Pitch: Coarse Thread
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Point: Cup Point
    • Material: Steel
    • Material Grade: Alloy Steel
    • Material Processes: Through-Hardened
    • Coating: Uncoated
    • Hardness Rating: Rockwell C45-C53
    • Standards and Specifications: ASME B18.6.2
    Product UPC Code:
    698435904958
