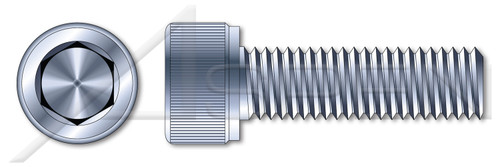

5/16"-24 X 1-1/2" Hex Socket Head Cap Screws, Full Thread, UNF Fine Thread, Alloy Steel, Zinc

PART NUMBER:
SO093-51624X112X15X04-000400
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
  • An internal hex socket drive is also known as an Allen drive.
  • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
  • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
  • Mechanical zinc plating is also known as peen plating, mechanical deposition, or impact plating.
  • Mechanical zinc is similar to zinc electroplating but eliminates the risk of hydrogen embrittlement.
  • Diameter (Nominal): 5/16"
  • Thread Pitch: 24
  • Diameter (Dimension): 0.3125"
  • Length (Nominal): 1-1/2"
  • Thread Length: 1.5"
  • Drive Size: 1/4"
  • Head Diameter: 0.469"
  • Head Height, Overall: 0.312"
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Socket Head Cap Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Pitch: UNF Fine Thread
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Alloy Steel
  • Material Processes: Heat Treated
  • Coating: Mechanically Zinc Plated
  • Coating Color: Clear
  • Coating Standard: Type 2 Mechanical Zinc 0.0002" Cr+3 RoHS
  • Standards and Specifications: ASTM B695-2000
Product UPC Code:
698435541863
Material Processes:
Heat Treated
Material:
Steel
Drive Style:
Hex Socket Drive
Pitch:
UNF Fine Thread
Head Style:
Cylindrical Head
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
System of Measurement:
Inch
Product Class:
Externally Threaded Fasteners
Shop by Application:
Socket Products
Shop by Material:
Steel
Shop by System of Measurement:
Inch
Category:
Socket Head Cap Screws
Order:
Machine Thread Fasteners
Brand:
Aspen Fasteners
Material Grade:
Alloy Steel
Head Height, Overall:
0.312"
Head Diameter:
0.469"
Recess Size:
1/4"
Thread Length:
1.5"
Length (Nominal):
1-1/2"
Thread Pitch:
24
Diameter (Dimension):
0.3125"
Diameter (Nominal):
5/16"
Standards and Specifications:
ASTM B695-2000
Coating Standard:
Type 2 Mechanical Zinc 0.0002" Cr+3 RoHS
Coating Color:
Clear
Coating:
Mechanically Zinc Plated
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
    • An internal hex socket drive is also known as an Allen drive.
    • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
    • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
    • Mechanical zinc plating is also known as peen plating, mechanical deposition, or impact plating.
    • Mechanical zinc is similar to zinc electroplating but eliminates the risk of hydrogen embrittlement.
    • Diameter (Nominal): 5/16"
    • Thread Pitch: 24
    • Diameter (Dimension): 0.3125"
    • Length (Nominal): 1-1/2"
    • Thread Length: 1.5"
    • Drive Size: 1/4"
    • Head Diameter: 0.469"
    • Head Height, Overall: 0.312"
    • Product Class: Externally Threaded Fasteners
    • Order: Machine Thread Fasteners
    • Category: Socket Head Cap Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Pitch: UNF Fine Thread
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Alloy Steel
    • Material Processes: Heat Treated
    • Coating: Mechanically Zinc Plated
    • Coating Color: Clear
    • Coating Standard: Type 2 Mechanical Zinc 0.0002" Cr+3 RoHS
    • Standards and Specifications: ASTM B695-2000
    Product UPC Code:
    698435541863

Contact us for availability information on part number SO093-51624X112X15X04-000400. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
