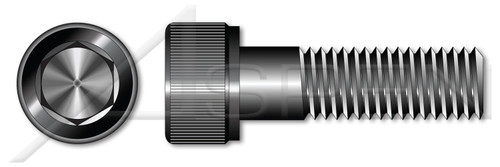

5/16"-24 X 8" Hex Socket Head Cap Screws, Part Thread, UNF Fine Thread, Alloy Steel, Black Oxide

PART NUMBER:
SO088-51624X8X1125X04-000125
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
  • An internal hex socket drive is also known as an Allen drive.
  • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
  • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
  • Diameter (Nominal): 5/16"
  • Thread Pitch: 24
  • Diameter (Dimension): 0.3125"
  • Length (Nominal): 8"
  • Thread Length: 1.125"
  • Drive Size: 1/4"
  • Head Diameter: 0.469"
  • Head Height, Overall: 0.312"
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Socket Head Cap Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: Semi-Standard
  • Head Style: Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Pitch: UNF Fine Thread
  • Thread Length: Part Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Alloy Steel
  • Material Processes: Heat Treated
  • Coating: Oxidized
  • Coating Color: Black
  • Standards and Specifications: ASME/ANSI B18.3-2002 and ASTM A574
Product UPC Code:
698435539587
Product Class:
Externally Threaded Fasteners
Standards and Specifications:
ASME/ANSI B18.3-2002 and ASTM A574
Order:
Machine Thread Fasteners
Category:
Socket Head Cap Screws
System of Measurement:
Inch
Brand:
Aspen Fasteners
Form and Design:
Semi-Standard
Head Style:
Cylindrical Head
Drive Style:
Hex Socket Drive
Shop by System of Measurement:
Inch
Pitch:
UNF Fine Thread
Thread Length:
Part Thread
Thread Direction:
Right-Hand Thread
Material:
Steel
Material Grade:
Alloy Steel
Material Processes:
Heat Treated
Coating:
Oxidized
Coating Color:
Black
Thread Length:
1.125"
Recess Size:
1/4"
Thread Pitch:
24
Length (Nominal):
8"
Head Diameter:
0.469"
Head Height, Overall:
0.312"
Diameter (Dimension):
0.3125"
Shop by Material:
Steel
Diameter (Nominal):
5/16"
Shop by Application:
Socket Products
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
    • An internal hex socket drive is also known as an Allen drive.
    • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
    • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
    • Diameter (Nominal): 5/16"
    • Thread Pitch: 24
    • Diameter (Dimension): 0.3125"
    • Length (Nominal): 8"
    • Thread Length: 1.125"
    • Drive Size: 1/4"
    • Head Diameter: 0.469"
    • Head Height, Overall: 0.312"
    • Product Class: Externally Threaded Fasteners
    • Order: Machine Thread Fasteners
    • Category: Socket Head Cap Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: Semi-Standard
    • Head Style: Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Pitch: UNF Fine Thread
    • Thread Length: Part Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Alloy Steel
    • Material Processes: Heat Treated
    • Coating: Oxidized
    • Coating Color: Black
    • Standards and Specifications: ASME/ANSI B18.3-2002 and ASTM A574
    Product UPC Code:
    698435539587

Contact us for availability information on part number SO088-51624X8X1125X04-000125. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
