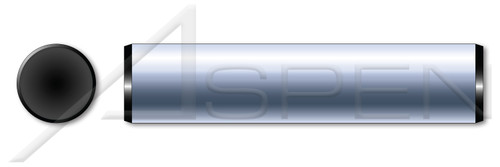

5/16" X 5/8" Solid Dowel Pins, Ground Oversize to 0.0002", Alloy Steel, Black Oxide, Made in U.S.A.

PART NUMBER:
PI008-516X58-000400
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Using receiving holes, dowel pins use friction to hold parts of an assembly together.
  • Can be used as pivot pins, hinges, or locating pins.
  • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
  • Diameter (Nominal): 5/16"
  • Diameter (Dimension): 0.3127"
  • Diameter (Minimum): 0.3126"
  • Diameter (Maximum): 0.3128"
  • Length (Nominal): 5/8"
  • Ball End Height: 0.104"
  • Chamfer Diameter (Minimum): 0.29"
  • Chamfer Diameter (Maximum): 0.302"
  • Product Class: Pins and Wireforms
  • Order: Dowel Pins
  • Category: Solid Dowel Pins
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Tolerance: Ground Oversize to 0.0002"
  • Material: Steel
  • Material Grade: Alloy Steel
  • Coating: Oxidized
  • Coating Color: Black
  • Origin: Made in U.S.A.
  • Standards and Specifications: ASME B18.8.2
Product UPC Code:
698435287358
Diameter (Maximum):
0.3128"
Chamfer Diameter (Maximum):
0.302"
Chamfer Diameter (Minimum):
0.29"
Ball End Height:
0.104"
Length (Nominal):
5/8"
Shop by System of Measurement:
Inch
Shop by Material:
Steel
Product Class:
Pins and Wireforms
Order:
Dowel Pins
Category:
Solid Dowel Pins
System of Measurement:
Inch
Brand:
Aspen Fasteners(r)
Tolerance:
Ground Oversize to 0.0002"
Material:
Steel
Material Grade:
Alloy Steel
Coating:
Oxidized
Coating Color:
Black
Origin:
Made in U.S.A.
Standards and Specifications:
ASME B18.8.2
Diameter (Nominal):
5/16"
Diameter (Dimension):
0.3127"
Diameter (Minimum):
0.3126"
  • Description
    • Using receiving holes, dowel pins use friction to hold parts of an assembly together.
    • Can be used as pivot pins, hinges, or locating pins.
    • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
    • Diameter (Nominal): 5/16"
    • Diameter (Dimension): 0.3127"
    • Diameter (Minimum): 0.3126"
    • Diameter (Maximum): 0.3128"
    • Length (Nominal): 5/8"
    • Ball End Height: 0.104"
    • Chamfer Diameter (Minimum): 0.29"
    • Chamfer Diameter (Maximum): 0.302"
    • Product Class: Pins and Wireforms
    • Order: Dowel Pins
    • Category: Solid Dowel Pins
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Tolerance: Ground Oversize to 0.0002"
    • Material: Steel
    • Material Grade: Alloy Steel
    • Coating: Oxidized
    • Coating Color: Black
    • Origin: Made in U.S.A.
    • Standards and Specifications: ASME B18.8.2
    Product UPC Code:
    698435287358

Contact us for availability information on part number PI008-516X58-000400. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
