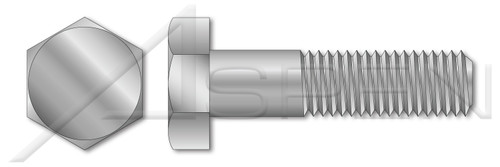

- Machine bolts are most commonly used in construction applications.
- Machine bolts tolerances are typically less precise than those of cap screws.
- Unlike cap screws, does not have a washer face or a machined point.
- Diameter (Nominal): 5/8"
- Thread Pitch: 11
- Diameter (Dimension): 0.625"
- Diameter (Minimum): 0.605"
- Diameter (Maximum): 0.642"
- Length (Nominal): 3"
- Thread Length (Nominal): 1.5"
- Across Flats (Basic): 15/16"
- Across Flats (Minimum): 0.906"
- Across Flats (Maximum): 0.938"
- Head Height, Overall: 0.422"
- Head Height, Overall (Minimum): 0.378"
- Head Height, Overall (Maximum): 0.444"
- Category: Machine Bolts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Drive Style: External Hex Drive
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Low Carbon Steel
- Coating: Hot Dip Galvanized
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.1
- Head Height, Overall:
- 0.422"
- Across Flats (Basic):
- 15/16"
- Thread Direction:
- Right-Hand Thread
- Brand:
- Aspen Fasteners
- Length (Nominal):
- 3"
- Shop by System of Measurement:
- Inch
- Material:
- Steel
- System of Measurement:
- Inch
- Category:
- Machine Bolts
- Diameter (Nominal):
- 5/8"
- Standards and Specifications:
- ASME B18.2.1
- Thread Pitch:
- 11
- Diameter (Dimension):
- 0.625"
- Thread Length (Nominal):
- 1.5"
- Material Grade:
- Low Carbon Steel
- Product Class:
- Externally Threaded Fasteners
- Shop by Material:
- Steel
- Coating Color:
- Clear
- Coating:
- Hot Dip Galvanized
- Order:
- Machine Thread Fasteners
- Drive Style:
- External Hex Drive
- Head Style:
- Hex Head
- Origin:
- Origin Undefined
- POS:
- BO033-5811X3-000100,BO033-5811X3-000200,BO033-5811X3-000150
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product81/BO033-5811X3.PDF
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/BO033-5811X3.zip
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/BO033-5811X3
- Head Height, Overall (Maximum):
- 0.444"
- Head Height, Overall (Minimum):
- 0.378"
- Diameter (Maximum):
- 0.642"
- Across Flats (Minimum):
- 0.906"
- Across Flats (Maximum):
- 0.938"
- Diameter (Minimum):
- 0.605"
- POS:
- BO033-5811X3-000200,BO033-5811X3-000150,BO033-5811X3-000100
-
Description
- Machine bolts are most commonly used in construction applications.
- Machine bolts tolerances are typically less precise than those of cap screws.
- Unlike cap screws, does not have a washer face or a machined point.
- Diameter (Nominal): 5/8"
- Thread Pitch: 11
- Diameter (Dimension): 0.625"
- Diameter (Minimum): 0.605"
- Diameter (Maximum): 0.642"
- Length (Nominal): 3"
- Thread Length (Nominal): 1.5"
- Across Flats (Basic): 15/16"
- Across Flats (Minimum): 0.906"
- Across Flats (Maximum): 0.938"
- Head Height, Overall: 0.422"
- Head Height, Overall (Minimum): 0.378"
- Head Height, Overall (Maximum): 0.444"
- Category: Machine Bolts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Drive Style: External Hex Drive
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Low Carbon Steel
- Coating: Hot Dip Galvanized
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.1
-
