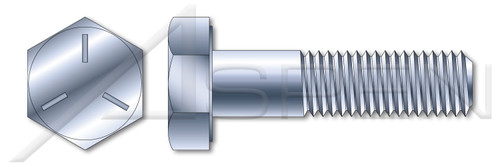

5/8"-18 X 4" Hex Head Cap Screws Bolts, UNF Fine Thread, Grade 5 Steel, Zinc

PART NUMBER:
BO058-5818X4-000120
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
Buy in bulk and save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
  • The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
  • The washer face under the head provides a precision bearing surface.
  • Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
  • The chamfered point improves engagement with a nut or pre-tapped hole.
  • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 5/8"
  • Thread Pitch: 18
  • Diameter (Dimension): 0.625"
  • Diameter (Minimum): 0.617"
  • Diameter (Maximum): 0.625"
  • Length (Nominal): 4"
  • Thread Length (Nominal): 1.5"
  • Across Flats (Basic): 15/16"
  • Across Flats (Minimum): 0.922"
  • Across Flats (Maximum): 0.938"
  • Head Height, Overall: 25/64"
  • Head Height, Overall (Minimum): 0.378"
  • Head Height, Overall (Maximum): 0.403"
PRODUCT ATTRIBUTES
  • Category: Cap Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Hex Head
  • Head Style Detail: Washer Face
  • Head Markings: Three radial lines 120 degrees apart and manufacturer ID
  • Drive Style: External Hex Drive
  • Pitch: UNF Fine Thread
  • Thread Direction: Right-Hand Thread
  • Point: Chamfered Point
  • Material: Steel
  • Material Grade: Grade 5
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Standards and Specifications: ASME B18.2.1 and SAE J429
Product UPC Code:
698435060531
Buy in bulk and save
Across Flats (Basic):
15/16"
Across Flats (Maximum):
0.938"
Across Flats (Minimum):
0.922"
Brand:
Aspen Fasteners(r)
Category:
Cap Screws
Coating:
Zinc Plated
Coating Color:
Clear
Diameter (Dimension):
0.625"
Diameter (Maximum):
0.625"
Diameter (Minimum):
0.617"
Diameter (Nominal):
5/8"
Drive Style:
External Hex Drive
Head Height, Overall:
25/64"
Head Height, Overall (Maximum):
0.403"
Head Height, Overall (Minimum):
0.378"
Head Markings:
Three radial lines 120 degrees apart and manufacturer ID
Head Style:
Hex Head
Head Style Detail:
Washer Face
Length (Nominal):
4"
Material:
Steel
Material Grade:
Grade 5
Order:
Machine Thread Fasteners
POS:
BO058-5818X4-000120
Pitch:
UNF Fine Thread
Point:
Chamfered Point
Product Class:
Externally Threaded Fasteners
Standards and Specifications:
ASME B18.2.1 and SAE J429
System of Measurement:
Inch
Thread Direction:
Right-Hand Thread
Thread Length (Nominal):
1.5"
Thread Pitch:
18
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/BO058-5818X4
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product82/BO058-5818X4.PDF
Shop by Material:
Steel
Shop by System of Measurement:
Inch
  • Description
    • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
    • The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
    • The washer face under the head provides a precision bearing surface.
    • Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
    • The chamfered point improves engagement with a nut or pre-tapped hole.
    • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 5/8"
    • Thread Pitch: 18
    • Diameter (Dimension): 0.625"
    • Diameter (Minimum): 0.617"
    • Diameter (Maximum): 0.625"
    • Length (Nominal): 4"
    • Thread Length (Nominal): 1.5"
    • Across Flats (Basic): 15/16"
    • Across Flats (Minimum): 0.922"
    • Across Flats (Maximum): 0.938"
    • Head Height, Overall: 25/64"
    • Head Height, Overall (Minimum): 0.378"
    • Head Height, Overall (Maximum): 0.403"
    PRODUCT ATTRIBUTES
    • Category: Cap Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Hex Head
    • Head Style Detail: Washer Face
    • Head Markings: Three radial lines 120 degrees apart and manufacturer ID
    • Drive Style: External Hex Drive
    • Pitch: UNF Fine Thread
    • Thread Direction: Right-Hand Thread
    • Point: Chamfered Point
    • Material: Steel
    • Material Grade: Grade 5
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Standards and Specifications: ASME B18.2.1 and SAE J429
    Product UPC Code:
    698435060531
