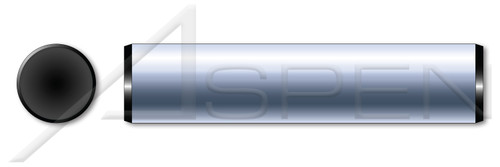

5/8" X 3-1/2" Solid Dowel Pins, Alloy Steel, Ebony Finish, Made in U.S.A.

PART NUMBER:
PI002-58X312
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Using receiving holes, dowel pins use friction to hold parts of an assembly together.
  • Can be used as pivot pins, hinges, or locating pins.
  • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
  • Diameter (Nominal): 5/8"
  • Diameter (Dimension): 0.6252"
  • Diameter (Minimum): 0.6251"
  • Diameter (Maximum): 0.6253"
  • Length (Nominal): 3-1/2"
  • Ball End Height: 0.208"
  • Chamfer Diameter (Minimum): 0.595"
  • Chamfer Diameter (Maximum): 0.611"
  • Product Class: Pins and Wireforms
  • Order: Dowel Pins
  • Category: Solid Dowel Pins
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Tolerance: Ground Oversize to 0.0002"
  • Material: Steel
  • Material Grade: Alloy Steel
  • Material Processes: Heat Treated
  • Coating: Uncoated
  • Coating Color: Ebony Finish
  • Hardness Rating: Rockwell C60 min. / Core=C47-C58
  • Origin: Made in U.S.A.
  • Standards and Specifications: ASME B18.8.2
Brand:
Aspen Fasteners
Diameter (Dimension):
0.6252"
Diameter (Nominal):
5/8"
Material Processes:
Heat Treated
Coating:
Uncoated
Coating Color:
Ebony Finish
Hardness Rating:
Rockwell C60 min. / Core=C47-C58
Origin:
Made in U.S.A.
Category:
Solid Dowel Pins
Chamfer Diameter (Maximum):
0.611"
Chamfer Diameter (Minimum):
0.595"
Order:
Dowel Pins
Ball End Height:
0.208"
Product Class:
Pins and Wireforms
Shop by Material:
Steel
Standards and Specifications:
ASME B18.8.2
System of Measurement:
Inch
Shop by System of Measurement:
Inch
Material Grade:
Alloy Steel
Material:
Steel
Tolerance:
Ground Oversize to 0.0002"
Length (Nominal):
3-1/2"
Diameter (Maximum):
0.6253"
Diameter (Minimum):
0.6251"
POS:
PI002-58X312-000010,PI002-58X312-000030
  • Description
    • Using receiving holes, dowel pins use friction to hold parts of an assembly together.
    • Can be used as pivot pins, hinges, or locating pins.
    • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
    • Diameter (Nominal): 5/8"
    • Diameter (Dimension): 0.6252"
    • Diameter (Minimum): 0.6251"
    • Diameter (Maximum): 0.6253"
    • Length (Nominal): 3-1/2"
    • Ball End Height: 0.208"
    • Chamfer Diameter (Minimum): 0.595"
    • Chamfer Diameter (Maximum): 0.611"
    • Product Class: Pins and Wireforms
    • Order: Dowel Pins
    • Category: Solid Dowel Pins
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Tolerance: Ground Oversize to 0.0002"
    • Material: Steel
    • Material Grade: Alloy Steel
    • Material Processes: Heat Treated
    • Coating: Uncoated
    • Coating Color: Ebony Finish
    • Hardness Rating: Rockwell C60 min. / Core=C47-C58
    • Origin: Made in U.S.A.
    • Standards and Specifications: ASME B18.8.2

Contact us for availability information on part number PI002-58X312. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
