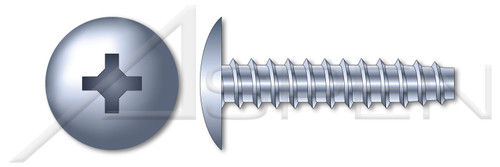

#6-19 X 1/2" Trilobe Thread Rolling Screws for Plastics, Truss Phillips Drive, 48-2 Thread, Steel, Zinc Plated and Waxed

PART NUMBER:
SC207-6X12-010000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • These thread rolling screws are fully compatible generic alternatives to the branded screws.
  • Also known as thread forming screws, thread rolling screws, trilob screws, or trilobe screws.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #6
  • Thread Pitch: 19
  • Diameter (Dimension): 0.147"
  • Length (Nominal): 1/2"
PRODUCT ATTRIBUTES
  • Category: Thread Rolling Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: Trilobe Triangular Body with Threads for Plastics
  • Head Style: Truss Head
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Threading: 48-2 Double-Lead Thread
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Processes: Case Hardened
  • Coating: Zinc Plated and Waxed
  • Coating Color: Clear
  • Hardness Rating: Rockwell C45 min. / Core=C28-C38
  • Standards and Specifications: ASME B18.6.3
Product UPC Code:
692559781914
Thread Direction:
Right-Hand Thread
Standards and Specifications:
ASME B18.6.3
Head Style:
Truss Head
Shop by Material:
Steel
Form and Design:
Trilobe Triangular Body with Threads for Plastics
Coating Color:
Clear
Coating:
Zinc Plated and Waxed
Brand:
Aspen Fasteners
Drive Detail:
Phillips Type H
Drive Style:
Cruciform Recess Drive
Threading:
48-2 Double-Lead Thread
Diameter (Nominal):
#6
Category:
Thread Rolling Screws
POS:
SC207-6X12-010000
Material:
Steel
Thread Length:
Full Thread
Shop by System of Measurement:
Inch
Hardness Rating:
Rockwell C45 min. / Core=C28-C38
System of Measurement:
Inch
Order:
Thread Cutting Fasteners
Diameter (Dimension):
0.147"
Length (Nominal):
1/2"
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC207-6X12
Product Class:
Externally Threaded Fasteners
Material Processes:
Case Hardened
Thread Pitch:
19
  • Description
    • These thread rolling screws are fully compatible generic alternatives to the branded screws.
    • Also known as thread forming screws, thread rolling screws, trilob screws, or trilobe screws.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): #6
    • Thread Pitch: 19
    • Diameter (Dimension): 0.147"
    • Length (Nominal): 1/2"
    PRODUCT ATTRIBUTES
    • Category: Thread Rolling Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: Trilobe Triangular Body with Threads for Plastics
    • Head Style: Truss Head
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Threading: 48-2 Double-Lead Thread
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Processes: Case Hardened
    • Coating: Zinc Plated and Waxed
    • Coating Color: Clear
    • Hardness Rating: Rockwell C45 min. / Core=C28-C38
    • Standards and Specifications: ASME B18.6.3
    Product UPC Code:
    692559781914
