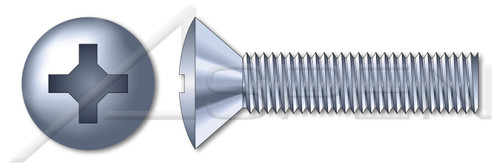

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Oval countersunk head screws are also known as raised countersunk head screws.
- Diameter (Nominal): #6
- Thread Pitch: 32
- Diameter (Dimension): 0.138"
- Length (Nominal): 2"
- Thread Length (Nominal): 1.872"
- Drive Recess Size: #2
- Drive Recess Width: 0.172"
- Drive Recess Depth (Minimum): 0.069"
- Drive Recess Depth (Maximum): 0.094"
- Head Diameter (Minimum): 0.238"
- Head Diameter (Maximum): 0.262"
- Head Height, Overall: 0.128"
- Head Base Height: 0.083"
- Head Dome Height: 0.045"
- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Oval Countersunk Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J82
- Shop by System of Measurement:
- Inch
- Shop by Material:
- Steel
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Category:
- Machine Screws
- System of Measurement:
- Inch
- Brand:
- Aspen Fasteners
- Head Style:
- Oval Countersunk Head
- Head Style Detail:
- 82 Degree Countersink
- Drive Style:
- Cruciform Recess Drive
- Drive Detail:
- Phillips Type H
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Full Thread
- Material:
- Steel
- Coating:
- Zinc Plated
- Coating Color:
- Clear
- Standards and Specifications:
- ASME B18.6.3 and SAE J82
- Length (Nominal):
- 2"
- Diameter (Nominal):
- #6
- Thread Pitch:
- 32
- Origin:
- Origin Undefined
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC138-632X2
- POS:
- SC138-632X2-004000,SC138-632X2-005000
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SC138-632X2.zip
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product48/SC138-632X2.PDF
- Thread Length (Nominal):
- 1.872"
- Head Dome Height:
- 0.045"
- Head Diameter (Minimum):
- 0.238"
- Diameter (Dimension):
- 0.138"
- Head Height, Overall:
- 0.128"
- Head Diameter (Maximum):
- 0.262"
- Drive Recess Depth (Minimum):
- 0.069"
- Drive Recess Depth (Maximum):
- 0.094"
- Drive Recess Size:
- #2
- Drive Recess Width:
- 0.172"
-
Description
- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Oval countersunk head screws are also known as raised countersunk head screws.
- Diameter (Nominal): #6
- Thread Pitch: 32
- Diameter (Dimension): 0.138"
- Length (Nominal): 2"
- Thread Length (Nominal): 1.872"
- Drive Recess Size: #2
- Drive Recess Width: 0.172"
- Drive Recess Depth (Minimum): 0.069"
- Drive Recess Depth (Maximum): 0.094"
- Head Diameter (Minimum): 0.238"
- Head Diameter (Maximum): 0.262"
- Head Height, Overall: 0.128"
- Head Base Height: 0.083"
- Head Dome Height: 0.045"
- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Oval Countersunk Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J82
-
