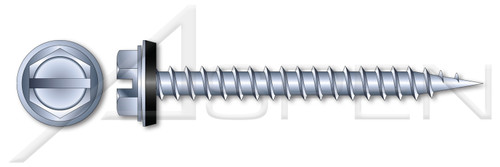

- Features an extra-sharp point that allows for easier penetration of sheet metal.
- Also known as needlepoint, speed, saber or ZIP screws.
- Bonded neoprene sealing washer creates a leakproof seal.
- Diameter (Nominal): #8
- Thread Pitch: 15
- Diameter (Dimension): 0.168"
- Length (Nominal): 1-1/2"
- Thread Length: 1-1/2"
- Across Flats (Basic): 1/4"
- Head Height, Overall: 0.11"
- Flange Diameter: 0.348"
- Flange Thickness: 0.031"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Piercing Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners®
- Head Style: Hex Indented Washer Head
- Head Style Detail: with Bonded Sealing Washer
- Drive Style: Hex Slotted Drive
- Threading: Double-Lead Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Needle Point
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated
- Coating Color: Clear
- Hardness Rating: Rockwell C45 min. / Core=C28-C38
- Material Processes:
- Case Hardened
- Order:
- Thread Cutting Fasteners
- Category:
- Self-Piercing Screws
- System of Measurement:
- Inch
- Brand:
- Aspen Fasteners(r)
- Head Style:
- Hex Indented Washer Head
- Head Style Detail:
- with Bonded Sealing Washer
- Drive Style:
- Hex Slotted Drive
- Threading:
- Double-Lead Thread
- Thread Length:
- Full Thread
- Thread Direction:
- Right-Hand Thread
- Point:
- Needle Point
- Flange Thickness:
- 0.031"
- Flange Diameter:
- 0.348"
- Head Height, Overall:
- 0.11"
- Across Flats (Basic):
- 1/4"
- Thread Length:
- 1-1/2"
- Length (Nominal):
- 1-1/2"
- Thread Pitch:
- 15
- Diameter (Dimension):
- 0.168"
- Diameter (Nominal):
- #8
- Hardness Rating:
- Rockwell C45 min. / Core=C28-C38
- Coating Color:
- Clear
- Material:
- Steel
- Coating:
- Zinc Plated
- Shop by System of Measurement:
- Inch
- Shop by Material:
- Steel
- Product Class:
- Externally Threaded Fasteners
-
Description
- Features an extra-sharp point that allows for easier penetration of sheet metal.
- Also known as needlepoint, speed, saber or ZIP screws.
- Bonded neoprene sealing washer creates a leakproof seal.
- Diameter (Nominal): #8
- Thread Pitch: 15
- Diameter (Dimension): 0.168"
- Length (Nominal): 1-1/2"
- Thread Length: 1-1/2"
- Across Flats (Basic): 1/4"
- Head Height, Overall: 0.11"
- Flange Diameter: 0.348"
- Flange Thickness: 0.031"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Piercing Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners®
- Head Style: Hex Indented Washer Head
- Head Style Detail: with Bonded Sealing Washer
- Drive Style: Hex Slotted Drive
- Threading: Double-Lead Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Needle Point
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated
- Coating Color: Clear
- Hardness Rating: Rockwell C45 min. / Core=C28-C38
