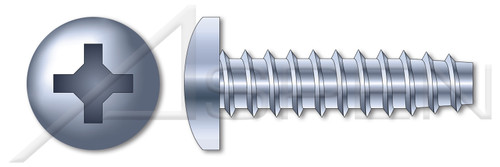

#8-16 X 1-1/4" Trilobe Thread Rolling Screws for Plastics, Pan Phillips Drive, 48-2 Thread, Steel, Zinc Plated and Waxed

PART NUMBER:
SC203-8X114-005000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • These thread rolling screws are fully compatible generic alternatives to the branded screws.
  • Also known as thread forming screws, thread rolling screws, trilob screws, or trilobe screws.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #8
  • Thread Pitch: 16
  • Diameter (Dimension): 0.185"
  • Length (Nominal): 1-1/4"
PRODUCT ATTRIBUTES
  • Category: Thread Rolling Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: Trilobe Triangular Body with Threads for Plastics
  • Head Style: Pan Head
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Threading: 48-2 Double-Lead Thread
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Processes: Case Hardened
  • Coating: Zinc Plated and Waxed
  • Coating Color: Clear
  • Hardness Rating: Rockwell C45 min. / Core=C28-C38
  • Standards and Specifications: ASME B18.6.3
Product UPC Code:
692559780689
Product Class:
Externally Threaded Fasteners
Drive Style:
Cruciform Recess Drive
Diameter (Dimension):
0.185"
Coating:
Zinc Plated and Waxed
Thread Direction:
Right-Hand Thread
Form and Design:
Trilobe Triangular Body with Threads for Plastics
Brand:
Aspen Fasteners
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC203-8X114
Material:
Steel
Threading:
48-2 Double-Lead Thread
Material Processes:
Case Hardened
Diameter (Nominal):
#8
Length (Nominal):
1-1/4"
Head Style:
Pan Head
System of Measurement:
Inch
Shop by System of Measurement:
Inch
Category:
Thread Rolling Screws
Thread Length:
Full Thread
Drive Detail:
Phillips Type H
Standards and Specifications:
ASME B18.6.3
POS:
SC203-8X114-005000
Hardness Rating:
Rockwell C45 min. / Core=C28-C38
Thread Pitch:
16
Shop by Material:
Steel
Coating Color:
Clear
Order:
Thread Cutting Fasteners
  • Description
    • These thread rolling screws are fully compatible generic alternatives to the branded screws.
    • Also known as thread forming screws, thread rolling screws, trilob screws, or trilobe screws.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): #8
    • Thread Pitch: 16
    • Diameter (Dimension): 0.185"
    • Length (Nominal): 1-1/4"
    PRODUCT ATTRIBUTES
    • Category: Thread Rolling Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: Trilobe Triangular Body with Threads for Plastics
    • Head Style: Pan Head
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Threading: 48-2 Double-Lead Thread
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Processes: Case Hardened
    • Coating: Zinc Plated and Waxed
    • Coating Color: Clear
    • Hardness Rating: Rockwell C45 min. / Core=C28-C38
    • Standards and Specifications: ASME B18.6.3
    Product UPC Code:
    692559780689

Contact us for availability information on part number SC203-8X114-005000. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
