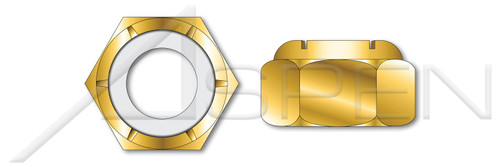

#8-32 Hex Nylon Insert Stop Lock Nuts, NM and NE Series, Steel, Yellow Zinc

#8-32 Hex Nylon Insert Stop Lock Nuts, NM and NE Series, Steel, Yellow Zinc

PART NUMBER:
NU079-832
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
  • The nylon insert collar retains its locking ability up to 250 degrees F (121 degrees C).
  • Proof load 90,000 psi. minimum.
  • Diameter (Nominal): #8
  • Thread Pitch: 32
  • Diameter (Dimension): 0.164"
  • Thread Length: 0.14"
  • Across Flats (Basic): 11/32"
  • Across Flats (Minimum): 0.336"
  • Across Flats (Maximum): 0.345"
  • Height (Basic): 0.239"
  • Height (Minimum): 0.219"
  • Height (Maximum): 0.239"
  • Product Class: Internally Threaded Fasteners
  • Order: Lock Nuts
  • Category: Hex Nylon Insert Stop Lock Nuts
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Drive Style: External Hex Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Low Carbon Steel
  • Coating: Zinc Plated
  • Coating Color: Yellow
  • Standards and Specifications: NM and NE Standard Series
Coating Color:
Yellow
Coating:
Zinc Plated
Material Grade:
Low Carbon Steel
Material:
Steel
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Drive Style:
External Hex Drive
Brand:
Aspen Fasteners
System of Measurement:
Inch
Height (Maximum):
0.239"
Category:
Hex Nylon Insert Stop Lock Nuts
Order:
Lock Nuts
Product Class:
Internally Threaded Fasteners
Shop by Material:
Steel
Shop by System of Measurement:
Inch
Height (Basic):
0.239"
Height (Minimum):
0.219"
Across Flats (Maximum):
0.345"
Across Flats (Minimum):
0.336"
Across Flats (Basic):
11/32"
Thread Length:
0.14"
Thread Pitch:
32
Diameter (Dimension):
0.164"
Diameter (Nominal):
#8
Standards and Specifications:
NM and NE Standard Series
POS:
NU079-832-002000,NU079-832-004000
  • Description
    • Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
    • The nylon insert collar retains its locking ability up to 250 degrees F (121 degrees C).
    • Proof load 90,000 psi. minimum.
    • Diameter (Nominal): #8
    • Thread Pitch: 32
    • Diameter (Dimension): 0.164"
    • Thread Length: 0.14"
    • Across Flats (Basic): 11/32"
    • Across Flats (Minimum): 0.336"
    • Across Flats (Maximum): 0.345"
    • Height (Basic): 0.239"
    • Height (Minimum): 0.219"
    • Height (Maximum): 0.239"
    • Product Class: Internally Threaded Fasteners
    • Order: Lock Nuts
    • Category: Hex Nylon Insert Stop Lock Nuts
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Drive Style: External Hex Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Low Carbon Steel
    • Coating: Zinc Plated
    • Coating Color: Yellow
    • Standards and Specifications: NM and NE Standard Series
