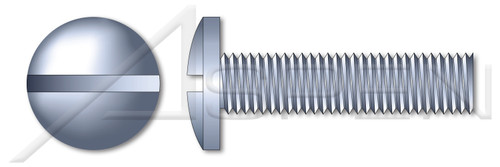

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #8
- Thread Pitch: 32
- Diameter (Dimension): 0.164"
- Length (Nominal): 1"
- Thread Length (Nominal): 1.000"
- Head Diameter (Minimum): 0.326"
- Head Diameter (Maximum): 0.344"
- Head Height, Overall (Minimum): 0.095"
- Head Height, Overall (Maximum): 0.105"
- Slot Depth (Minimum): 0.050"
- Slot Depth (Maximum): 0.065"
- Slot Width (Minimum): 0.045"
- Slot Width (Maximum): 0.054"
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Binding Undercut Head
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J82
Product UPC Code:
698435320192
- Brand:
- Aspen Fasteners
- Category:
- Machine Screws
- Coating:
- Zinc Plated
- Coating Color:
- Clear
- Diameter (Nominal):
- #8
- Drive Style:
- Slotted Drive
- Head Style:
- Binding Undercut Head
- Length (Nominal):
- 1"
- Material:
- Steel
- Order:
- Machine Thread Fasteners
- Product Class:
- Externally Threaded Fasteners
- Standards and Specifications:
- ASME B18.6.3 and SAE J82
- System of Measurement:
- Inch
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Full Thread
- Thread Pitch:
- 32
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC092-832X1
- Shop by Material:
- Steel
- Shop by System of Measurement:
- Inch
- Origin:
- Origin Undefined
- POS:
- SC092-832X1-005000
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SC092-832X1.zip
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product55/SC092-832X1.PDF
- Diameter (Dimension):
- 0.164"
- Slot Depth (Maximum):
- 0.065"
- Slot Width (Maximum):
- 0.054"
- Slot Depth (Minimum):
- 0.050"
- Head Diameter (Maximum):
- 0.344"
- Head Height, Overall (Minimum):
- 0.095"
- Head Diameter (Minimum):
- 0.326"
- Head Height, Overall (Maximum):
- 0.105"
- Thread Length (Nominal):
- 1.000"
- Slot Width (Minimum):
- 0.045"
