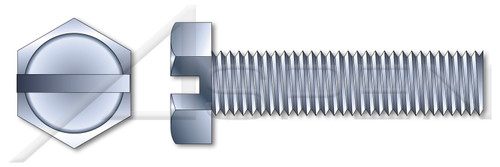

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #8
- Thread Pitch: 32
- Diameter (Dimension): 0.164"
- Length (Nominal): 2"
- Thread Length (Nominal): 2.000"
- Across Flats (Minimum): 0.244"
- Across Flats (Maximum): 0.250"
- Head Height, Overall (Minimum): 0.096"
- Head Height, Overall (Maximum): 0.110"
- Slot Depth (Minimum): 0.052"
- Slot Depth (Maximum): 0.066"
- Slot Width (Minimum): 0.045"
- Slot Width (Maximum): 0.054"
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Indented Head
- Drive Style: Hex Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J82
Product UPC Code:
698435332935
- Brand:
- Aspen Fasteners
- Thread Pitch:
- 32
- Thread Direction:
- Right-Hand Thread
- Length (Nominal):
- 2"
- Coating Color:
- Clear
- Shop by Material:
- Steel
- Material:
- Steel
- Diameter (Nominal):
- #8
- Thread Length:
- Full Thread
- System of Measurement:
- Inch
- Drive Style:
- Hex Slotted Drive
- Standards and Specifications:
- ASME B18.6.3 and SAE J82
- Head Style:
- Hex Indented Head
- Order:
- Machine Thread Fasteners
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC121-832X2
- Product Class:
- Externally Threaded Fasteners
- Category:
- Machine Screws
- Shop by System of Measurement:
- Inch
- Origin:
- Origin Undefined
- Coating:
- Zinc Plated
- POS:
- SC121-832X2-002000
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SC121-832X2.zip
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product47/SC121-832X2.PDF
- Slot Depth (Minimum):
- 0.052"
- Slot Width (Maximum):
- 0.054"
- Slot Width (Minimum):
- 0.045"
- Head Height, Overall (Minimum):
- 0.096"
- Head Height, Overall (Maximum):
- 0.110"
- Across Flats (Minimum):
- 0.244"
- Slot Depth (Maximum):
- 0.066"
- Diameter (Dimension):
- 0.164"
- Thread Length (Nominal):
- 2.000"
- Across Flats (Maximum):
- 0.250"
