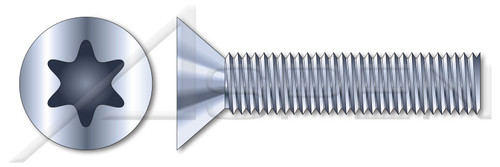

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- A 6-lobe recess is also known as a hexalobular internal drive.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #8
- Thread Pitch: 32
- Diameter (Dimension): 0.164"
- Length (Nominal): 3/4"
- Thread Length (Nominal): 0.650"
- Drive Recess Size: T15
- Drive Recess Width: 0.132"
- Drive Recess Depth (Minimum): 0.040"
- Drive Recess Depth (Maximum): 0.051"
- Head Diameter (Minimum): 0.285"
- Head Diameter (Maximum): 0.312"
- Head Height, Overall: 0.100"
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: 6Lobe Drive
- Drive Detail: Torx® Generic Alternative
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: SAE J82
Product UPC Code:
692559793474
