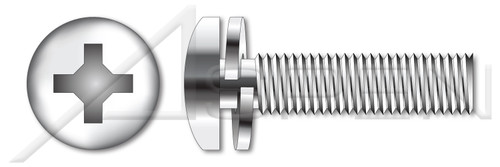

#8-32 X 3/8" Split Lock Washer SEMS Machine Screws, Pan Phillips Drive, Stainless Steel, Washer Material 410 Stainless Steel

#8-32 X 3/8" Split Lock Washer SEMS Machine Screws, Pan Phillips Drive, Stainless Steel, Washer Material 410 Stainless Steel

PART NUMBER:
ST116-832X38-005000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
  • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #8
  • Thread Pitch: 32
  • Diameter (Dimension): 0.164"
  • Length (Nominal): 3/8"
  • Thread Length (Nominal): 0.375"
  • Inside Diameter (Minimum): 0.149"
  • Inside Diameter (Maximum): 0.155"
  • Outside Diameter (Minimum): 0.305"
  • Outside Diameter (Maximum): 0.319"
  • Thickness (Nominal): 0.040"
  • Radial Width: 0.078"
  • Drive Recess Size: #2
  • Drive Recess Width: 0.175"
  • Drive Recess Depth (Minimum): 0.071"
  • Drive Recess Depth (Maximum): 0.097"
  • Head Diameter (Minimum): 0.306"
  • Head Diameter (Maximum): 0.322"
  • Head Height, Overall (Minimum): 0.105"
  • Head Height, Overall (Maximum): 0.115"
  • Head Radius: 0.015"
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
  • Head Style: Pan Head
  • Head Style Detail: Free-Spinning 410 Stainless Steel Split Lock Washer
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: 18-8 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: ASME B18.13
Product UPC Code:
698435646292
Coating:
Uncoated
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Drive Detail:
Phillips Type H
Drive Style:
Cruciform Recess Drive
Head Style Detail:
Free-Spinning 410 Stainless Steel Split Lock Washer
Head Style:
Pan Head
Form and Design:
SEMS Screws Pre-Assembled with a Captive Lock Washer
Brand:
Aspen Fasteners
System of Measurement:
Inch
Shop by System of Measurement:
Inch
Category:
Machine Screws
Order:
Machine Thread Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Material:
Stainless Steel
Length (Nominal):
3/8"
Thread Pitch:
32
Diameter (Dimension):
0.164"
Diameter (Nominal):
#8
Standards and Specifications:
ASME B18.13
Material Grade:
18-8 Stainless Steel
POS:
ST116-832X38-005000
Brand:
Aspen Fasteners(r)
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ST116-832X38.zip
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product47/ST116-832X38.PDF
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ST116-832X38
Drive Recess Depth (Maximum):
0.097"
Head Height, Overall (Minimum):
0.105"
Drive Recess Width:
0.175"
Thickness (Nominal):
0.040"
Outside Diameter (Maximum):
0.319"
Outside Diameter (Minimum):
0.305"
Inside Diameter (Maximum):
0.155"
Origin:
Origin Undefined
Drive Recess Depth (Minimum):
0.071"
Head Diameter (Minimum):
0.306"
Thread Length (Nominal):
0.375"
Head Height, Overall (Maximum):
0.115"
Drive Recess Size:
#2
Inside Diameter (Minimum):
0.149"
Head Diameter (Maximum):
0.322"
Print
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
    • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): #8
    • Thread Pitch: 32
    • Diameter (Dimension): 0.164"
    • Length (Nominal): 3/8"
    • Thread Length (Nominal): 0.375"
    • Inside Diameter (Minimum): 0.149"
    • Inside Diameter (Maximum): 0.155"
    • Outside Diameter (Minimum): 0.305"
    • Outside Diameter (Maximum): 0.319"
    • Thickness (Nominal): 0.040"
    • Radial Width: 0.078"
    • Drive Recess Size: #2
    • Drive Recess Width: 0.175"
    • Drive Recess Depth (Minimum): 0.071"
    • Drive Recess Depth (Maximum): 0.097"
    • Head Diameter (Minimum): 0.306"
    • Head Diameter (Maximum): 0.322"
    • Head Height, Overall (Minimum): 0.105"
    • Head Height, Overall (Maximum): 0.115"
    • Head Radius: 0.015"
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
    • Head Style: Pan Head
    • Head Style Detail: Free-Spinning 410 Stainless Steel Split Lock Washer
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: 18-8 Stainless Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: ASME B18.13
    Product UPC Code:
    698435646292
  • 3D Product View
