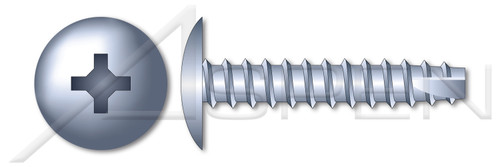

#8 X 3/8" Thread-Cutting Screws, Type "25", Truss Phillips Drive, Steel, Zinc Plated and Baked

PART NUMBER:
SC285-8X38-010000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
  • Type 25 point screws are similar to type 23 but are equipped with a coarse type B thread.
  • Diameter (Nominal): #8
  • Length (Nominal): 3/8"
  • Product Class: Externally Threaded Fasteners
  • Order: Thread Cutting Fasteners
  • Category: Thread Cutting Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Truss Head
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Point: Type "25"
  • Material: Steel
  • Material Processes: Case Hardened
  • Coating: Zinc Plated and Baked
  • Coating Color: Clear
  • Hardness Rating: Rockwell C45 min. / Core=C28-C38
  • Standards and Specifications: ASME B18.6.3 and SAE J933
Product UPC Code:
698435386655
Diameter (Nominal):
#8
Order:
Thread Cutting Fasteners
Length (Nominal):
3/8"
Point:
Type "25"
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Drive Detail:
Phillips Type H
Drive Style:
Cruciform Recess Drive
Head Style:
Truss Head
Brand:
Aspen Fasteners
System of Measurement:
Inch
Category:
Thread Cutting Screws
Material:
Steel
Material Processes:
Case Hardened
Coating:
Zinc Plated and Baked
Coating Color:
Clear
Hardness Rating:
Rockwell C45 min. / Core=C28-C38
Standards and Specifications:
ASME B18.6.3 and SAE J933
Shop by System of Measurement:
Inch
Shop by Material:
Steel
Product Class:
Externally Threaded Fasteners
POS:
SC285-8X38-010000
  • Description
    • Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
    • Type 25 point screws are similar to type 23 but are equipped with a coarse type B thread.
    • Diameter (Nominal): #8
    • Length (Nominal): 3/8"
    • Product Class: Externally Threaded Fasteners
    • Order: Thread Cutting Fasteners
    • Category: Thread Cutting Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Truss Head
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Point: Type "25"
    • Material: Steel
    • Material Processes: Case Hardened
    • Coating: Zinc Plated and Baked
    • Coating Color: Clear
    • Hardness Rating: Rockwell C45 min. / Core=C28-C38
    • Standards and Specifications: ASME B18.6.3 and SAE J933
    Product UPC Code:
    698435386655
