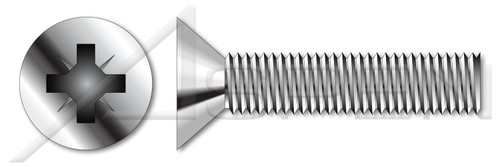

M1.6-0.35 X 10mm DIN 965 / ISO 7046, Metric, Machine Screws, Flat Pozidriv Alternative Drive, Full Thread, A2 Stainless Steel

PART NUMBER:
ME519-016035X10-001000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
  • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M1.6
  • Thread Pitch: 0.35
  • Diameter (Dimension): 1.6mm
  • Length (Nominal): 10mm
  • Thread Length (Nominal): 9.04mm
  • Drive Recess Size: #0
  • Drive Recess Width: 1.8mm
  • Drive Recess Depth (Minimum): 0.89mm
  • Drive Recess Depth (Maximum): 1.14mm
  • Head Diameter: 3mm
  • Head Diameter (Minimum): 2.75mm
  • Head Diameter (Maximum): 3mm
  • Head Height, Overall: 0.96mm
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Flat Countersunk Head
  • Head Style Detail: 90 Degree Countersink
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Pozidriv Type Z
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 965 / ISO 7046
Product UPC Code:
692559681320
Shop by Material:
Stainless Steel
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME519-016035X10
System of Measurement:
Metric
Head Diameter:
3mm
Drive Recess Width:
1.8mm
POS:
ME519-016035X10-001000
Head Height, Overall:
0.96mm
Brand:
Aspen Fasteners
Product Class:
Externally Threaded Fasteners
Drive Style:
Cruciform Recess Drive
Diameter (Nominal):
M1.6
Head Diameter (Maximum):
3mm
Head Diameter (Minimum):
2.75mm
Head Style:
Flat Countersunk Head
Category:
Machine Screws
Thread Length (Nominal):
9.04mm
Thread Pitch:
0.35
Drive Recess Size:
#0
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product51/ME519-016035X10.PDF
Length (Nominal):
10mm
Order:
Machine Thread Fasteners
Thread Direction:
Right-Hand Thread
Drive Detail:
Pozidriv Type Z
Coating:
Uncoated
Shop by System of Measurement:
Metric
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME519-016035X10.zip
Origin:
Origin Undefined
Standards and Specifications:
DIN 965 / ISO 7046
Head Style Detail:
90 Degree Countersink
Diameter (Dimension):
1.6mm
Material:
Stainless Steel
Thread Length:
Full Thread
Material Grade:
A2 Stainless Steel
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
    • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M1.6
    • Thread Pitch: 0.35
    • Diameter (Dimension): 1.6mm
    • Length (Nominal): 10mm
    • Thread Length (Nominal): 9.04mm
    • Drive Recess Size: #0
    • Drive Recess Width: 1.8mm
    • Drive Recess Depth (Minimum): 0.89mm
    • Drive Recess Depth (Maximum): 1.14mm
    • Head Diameter: 3mm
    • Head Diameter (Minimum): 2.75mm
    • Head Diameter (Maximum): 3mm
    • Head Height, Overall: 0.96mm
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Flat Countersunk Head
    • Head Style Detail: 90 Degree Countersink
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Pozidriv Type Z
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 965 / ISO 7046
    Product UPC Code:
    692559681320
