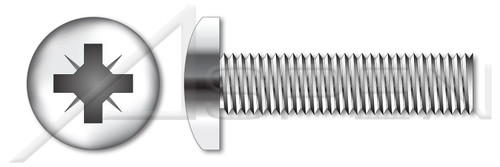

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
- Pan head screws are also known as raised cheese head screws.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M1.6
- Thread Pitch: 0.35
- Diameter (Dimension): 1.6mm
- Length (Nominal): 3mm
- Thread Length: 3mm
- Recess Size: #0
- Head Diameter: 3.2mm
- Head Diameter (Minimum): 2.9mm
- Head Diameter (Maximum): 3.2mm
- Head Height, Overall: 1.3mm
- Head Height, Overall (Minimum): 1.18mm
- Head Height, Overall (Maximum): 1.42mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Pozidriv Type Z
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 7985A / ISO 7045
Product UPC Code:
692559688176
- Head Diameter (Minimum):
- 2.9mm
- Head Diameter (Maximum):
- 3.2mm
- Shop by Material:
- Stainless Steel
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Category:
- Machine Screws
- System of Measurement:
- Metric
- Brand:
- Aspen Fasteners(r)
- Head Style:
- Pan Head
- Shop by System of Measurement:
- Metric
- Drive Style:
- Cruciform Recess Drive
- Drive Detail:
- Pozidriv Type Z
- Thread Length:
- Full Thread
- Thread Direction:
- Right-Hand Thread
- Material:
- Stainless Steel
- Material Grade:
- A2 Stainless Steel
- Coating:
- Uncoated
- Standards and Specifications:
- DIN 7985A / ISO 7045
- Diameter (Nominal):
- M1.6
- Diameter (Dimension):
- 1.6mm
- Thread Pitch:
- 0.35
- Length (Nominal):
- 3mm
- Thread Length:
- 3mm
- Recess Size:
- #0
- Head Diameter:
- 3.2mm
- Head Height, Overall (Maximum):
- 1.42mm
- Head Height, Overall (Minimum):
- 1.18mm
- Head Height, Overall:
- 1.3mm
