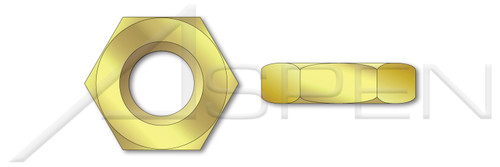

- Jam nuts are also known as low form nuts or thin nuts.
- Jam nuts are about half the height of regular finished nuts.
- Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M10
- Thread Pitch: 1.5
- Diameter (Dimension): 10mm
- Thread Length (Nominal): 5mm
- Across Flats (Basic): 17mm
- Across Flats (Minimum): 16.73mm
- Across Flats (Maximum): 17mm
- Height (Basic): 5mm
- Height (Minimum): 4.7mm
- Height (Maximum): 5mm
PRODUCT ATTRIBUTES- Category: Hex Jam Thin Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Double Chamfered
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Brass
- Coating: Uncoated
- Standards and Specifications: DIN 439B
Product UPC Code:
698435215733
- Height (Maximum):
- 5mm
- Coating:
- Uncoated
- Height (Minimum):
- 4.7mm
- System of Measurement:
- Metric
- Order:
- Nuts
- Thread Direction:
- Right-Hand Thread
- Diameter (Nominal):
- M10
- Form and Design:
- Double Chamfered
- Drive Style:
- External Hex Drive
- Across Flats (Basic):
- 17mm
- Height (Basic):
- 5mm
- Across Flats (Minimum):
- 16.73mm
- Standards and Specifications:
- DIN 439B
- Product Class:
- Internally Threaded Fasteners
- Diameter (Dimension):
- 10mm
- Thread Pitch:
- 1.5
- Brand:
- Aspen Fasteners
- Thread Length (Nominal):
- 5mm
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product37/ME234-1015.PDF
- Across Flats (Maximum):
- 17mm
- Shop by Material:
- Brass
- Shop by System of Measurement:
- Metric
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME234-1015.zip
- Thread Length:
- Full Thread
- Material:
- Brass
- Category:
- Hex Jam Thin Nuts
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME234-1015
- POS:
- ME234-1015-00050
