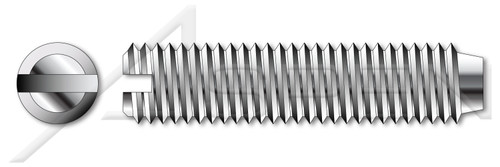

- Holds an object in place via friction between the point of the screw and the fastened material.
- Headless set screws are also known as blind screws or grub screws.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Set screws are designed to be used under compressive stress only.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M10
- Thread Pitch: 1.5
- Diameter (Dimension): 10mm
- Length (Nominal): 10mm
- Thread Length (Nominal): 10mm
- Point Width: 7mm
- Point Width (Minimum): 6.64mm
- Point Width (Maximum): 7mm
- Slot Depth (Minimum): 2.4mm
- Slot Depth (Maximum): 3mm
- Slot Width (Nominal): 1.6mm
- Slot Width (Minimum): 1.66mm
- Slot Width (Maximum): 1.91mm
PRODUCT ATTRIBUTES- Category: Set Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Headless
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Flat Point
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 551 / ISO 4766
