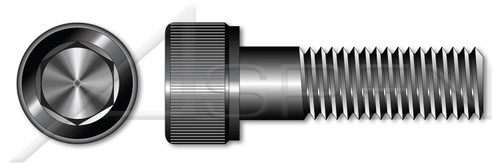

M10-1.5 X 120mm DIN 912 / ISO 4762 and ASTM A574M, Metric, Socket Head Cap Screws, Hex Socket Drive, Part Thread, Class 12.9 Steel

M10-1.5 X 120mm DIN 912 / ISO 4762 and ASTM A574M, Metric, Socket Head Cap Screws, Hex Socket Drive, Part Thread, Class 12.9 Steel

PART NUMBER:
ME089-1015X120-000050
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
  • An internal hex socket drive is also known as an Allen drive.
  • Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M10
  • Thread Pitch: 1.5
  • Diameter (Dimension): 10mm
  • Diameter (Minimum): 9.78mm
  • Diameter (Maximum): 10mm
  • Length (Nominal): 120mm
  • Thread Length (Nominal): 32mm
  • Drive Recess Size: 8mm
  • Drive Recess Width: 8mm
  • Drive Recess Width (Minimum): 8.03mm
  • Drive Recess Width (Maximum): 8.18mm
  • Drive Recess Depth: 5mm
  • Head Diameter: 16mm
  • Head Diameter (Minimum): 15.73mm
  • Head Diameter (Maximum): 16mm
  • Head Height, Overall: 10mm
  • Head Height, Overall (Minimum): 9.64mm
  • Head Height, Overall (Maximum): 10mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Length: Part Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 12.9 Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 912 / ISO 4762 and ASTM A574M
Product UPC Code:
698435176263
Drive Style:
Hex Socket Drive
Shop by Application:
Socket Products
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Socket Head Cap Screws
System of Measurement:
Metric
Brand:
Aspen Fasteners
Head Style:
Cylindrical Head
Thread Direction:
Right-Hand Thread
Thread Length:
Part Thread
Material:
Steel
Material Grade:
Class 12.9 Steel
Coating:
Uncoated
Standards and Specifications:
ASTM A574M
Diameter (Nominal):
M10
Thread Pitch:
1.5
Length (Nominal):
120mm
Shop by System of Measurement:
Metric
Shop by Material:
Steel
POS:
ME089-1015X120-000050
Brand:
Aspen Fasteners(r)
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME089-1015X120.zip
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product61/ME089-1015X120.PDF
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME089-1015X120
Head Diameter:
16mm
Head Height, Overall (Minimum):
9.64mm
Drive Recess Width:
8mm
Head Height, Overall (Maximum):
10mm
Drive Recess Width (Minimum):
8.03mm
Head Diameter (Minimum):
15.73mm
Diameter (Maximum):
10mm
Head Diameter (Maximum):
16mm
Head Height, Overall:
10mm
Thread Length (Nominal):
32mm
Origin:
Origin Undefined
Diameter (Minimum):
9.78mm
Diameter (Dimension):
10mm
Drive Recess Width (Maximum):
8.18mm
Drive Recess Size:
8mm
Standards and Specifications:
DIN 912 / ISO 4762 and ASTM A574M
Drive Recess Depth:
5mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
    • An internal hex socket drive is also known as an Allen drive.
    • Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M10
    • Thread Pitch: 1.5
    • Diameter (Dimension): 10mm
    • Diameter (Minimum): 9.78mm
    • Diameter (Maximum): 10mm
    • Length (Nominal): 120mm
    • Thread Length (Nominal): 32mm
    • Drive Recess Size: 8mm
    • Drive Recess Width: 8mm
    • Drive Recess Width (Minimum): 8.03mm
    • Drive Recess Width (Maximum): 8.18mm
    • Drive Recess Depth: 5mm
    • Head Diameter: 16mm
    • Head Diameter (Minimum): 15.73mm
    • Head Diameter (Maximum): 16mm
    • Head Height, Overall: 10mm
    • Head Height, Overall (Minimum): 9.64mm
    • Head Height, Overall (Maximum): 10mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Thread Length: Part Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 12.9 Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 912 / ISO 4762 and ASTM A574M
    Product UPC Code:
    698435176263
  • 3D Product View
