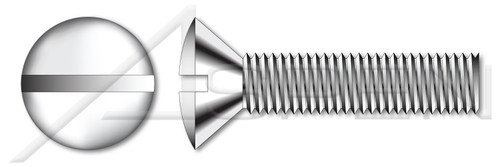

M10-1.5 X 20mm DIN 964 / ISO 2010, Metric, Machine Screws, Oval Slot Drive, Full Thread, A4 Stainless Steel

PART NUMBER:
ME201-1015X20-000100
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • Oval countersunk head screws are also known as raised countersunk head screws.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M10
  • Thread Pitch: 1.5
  • Diameter (Dimension): 10mm
  • Length (Nominal): 20mm
  • Thread Length (Nominal): 15mm
  • Head Diameter: 18mm
  • Head Diameter (Minimum): 17.5mm
  • Head Diameter (Maximum): 18mm
  • Head Height, Overall: 5mm
  • Head Dome Height: 2.5mm
  • Slot Depth (Minimum): 4mm
  • Slot Depth (Maximum): 4.6mm
  • Slot Width (Nominal): 2.5mm
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Oval Countersunk Head
  • Head Style Detail: 90 Degree Countersink
  • Drive Style: Slotted Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 964 / ISO 2010
Product UPC Code:
692559609782
System of Measurement:
Metric
Material Grade:
A4 Stainless Steel
Shop by System of Measurement:
Metric
Standards and Specifications:
DIN 964 / ISO 2010
Slot Depth (Minimum):
4mm
Diameter (Nominal):
M10
Thread Length (Nominal):
15mm
Head Height, Overall:
5mm
Order:
Machine Thread Fasteners
Shop by Material:
Stainless Steel
Thread Pitch:
1.5
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME201-1015X20
Head Diameter (Maximum):
18mm
Head Diameter:
18mm
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product65/ME201-1015X20.PDF
Head Style Detail:
90 Degree Countersink
Diameter (Dimension):
10mm
Coating:
Uncoated
Length (Nominal):
20mm
Slot Depth (Maximum):
4.6mm
Drive Style:
Slotted Drive
Thread Direction:
Right-Hand Thread
Head Diameter (Minimum):
17.5mm
Thread Length:
Full Thread
POS:
ME201-1015X20-000100
Head Style:
Oval Countersunk Head
Material:
Stainless Steel
Head Dome Height:
2.5mm
Origin:
Origin Undefined
Product Class:
Externally Threaded Fasteners
Slot Width (Nominal):
2.5mm
Brand:
Aspen Fasteners
Category:
Machine Screws
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME201-1015X20.zip
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • Oval countersunk head screws are also known as raised countersunk head screws.
    • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M10
    • Thread Pitch: 1.5
    • Diameter (Dimension): 10mm
    • Length (Nominal): 20mm
    • Thread Length (Nominal): 15mm
    • Head Diameter: 18mm
    • Head Diameter (Minimum): 17.5mm
    • Head Diameter (Maximum): 18mm
    • Head Height, Overall: 5mm
    • Head Dome Height: 2.5mm
    • Slot Depth (Minimum): 4mm
    • Slot Depth (Maximum): 4.6mm
    • Slot Width (Nominal): 2.5mm
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Oval Countersunk Head
    • Head Style Detail: 90 Degree Countersink
    • Drive Style: Slotted Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A4 Stainless Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 964 / ISO 2010
    Product UPC Code:
    692559609782
