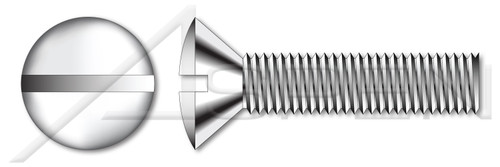

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Oval countersunk head screws are also known as raised countersunk head screws.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M10
- Thread Pitch: 1.5
- Diameter (Dimension): 10mm
- Length (Nominal): 25mm
- Thread Length (Nominal): 20mm
- Head Diameter: 18mm
- Head Diameter (Minimum): 17.5mm
- Head Diameter (Maximum): 18mm
- Head Height, Overall: 5mm
- Head Dome Height: 2.5mm
- Slot Depth (Minimum): 4mm
- Slot Depth (Maximum): 4.6mm
- Slot Width (Nominal): 2.5mm
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Oval Countersunk Head
- Head Style Detail: 90 Degree Countersink
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 964 / ISO 2010
Product UPC Code:
692559608891
- Brand:
- Aspen Fasteners
- Category:
- Machine Screws
- Coating:
- Uncoated
- Diameter (Dimension):
- 10mm
- Diameter (Nominal):
- M10
- Drive Style:
- Slotted Drive
- Head Diameter:
- 18mm
- Head Diameter (Maximum):
- 18mm
- Head Diameter (Minimum):
- 17.5mm
- Head Dome Height:
- 2.5mm
- Head Height, Overall:
- 5mm
- Head Style:
- Oval Countersunk Head
- Head Style Detail:
- 90 Degree Countersink
- Length (Nominal):
- 25mm
- Material:
- Stainless Steel
- Material Grade:
- A2 Stainless Steel
- Order:
- Machine Thread Fasteners
- Origin:
- Origin Undefined
- POS:
- ME200-1015X25-000200
- Product Class:
- Externally Threaded Fasteners
- Slot Depth (Maximum):
- 4.6mm
- Slot Depth (Minimum):
- 4mm
- Slot Width (Nominal):
- 2.5mm
- Standards and Specifications:
- DIN 964 / ISO 2010
- System of Measurement:
- Metric
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Full Thread
- Thread Length (Nominal):
- 20mm
- Thread Pitch:
- 1.5
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME200-1015X25.zip
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME200-1015X25
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product65/ME200-1015X25.PDF
