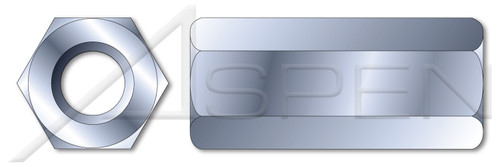

- Coupling nuts are also known as rod couplings or female thread adapters.
- Designed to join two externally threaded parts of equal thread diameter and pitch.
- Minimum tensile strength of 60,000 psi.
- Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M10
- Thread Pitch: 1.5
- Diameter (Dimension): 10mm
- Thread Length (Nominal): 30mm
- Across Flats (Basic): 17mm
- Height (Basic): 30mm
PRODUCT ATTRIBUTES- Category: Coupling Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Double Chamfered and Double Countersunk
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 10.9 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: DIN 6334
Product UPC Code:
698435915107
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product90/ME697-1015X30.PDF
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME697-1015X30.zip
- Diameter (Dimension):
- 10mm
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME697-1015X30
- Form and Design:
- Double Chamfered and Double Countersunk
- Shop by System of Measurement:
- Metric
- Height (Basic):
- 30mm
- Thread Pitch:
- 1.5
- Across Flats (Basic):
- 17mm
- Product Class:
- Internally Threaded Fasteners
- Coating:
- Zinc Plated
- Shop by Material:
- Steel
- Standards and Specifications:
- DIN 6334
- Coating Color:
- Clear
- Thread Length (Nominal):
- 30mm
- System of Measurement:
- Metric
- Order:
- Nuts
- Material Grade:
- Class 10.9 Steel
- Thread Direction:
- Right-Hand Thread
- Brand:
- Aspen Fasteners(r)
- Category:
- Coupling Nuts
- Thread Length:
- Full Thread
- POS:
- ME697-1015X30-000050
- Drive Style:
- External Hex Drive
- Material:
- Steel
- Diameter (Nominal):
- M10
