- MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
- MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.

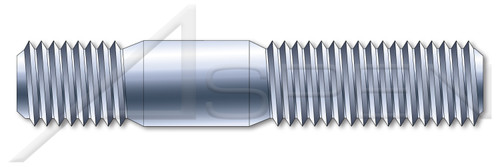

- Double-ended studs are used to join parts when a bolt or screw head is not an option.
- Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
- Diameter (Nominal): M10
- Thread Pitch: 1.5
- Diameter (Dimension): 10mm
- Diameter (Minimum): 9.78mm
- Diameter (Maximum): 10mm
- Length (Nominal): 30mm
- Length Overall: 40mm
- Screw-End Thread Length: 10mm
- Thread Length (Nominal): 26mm
- Body Length (Nominal): 4mm
- Category: Studs, Double-Ended
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Screw-in End 1.0 X Diameter
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 8.8 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: DIN 938
- Product Class:
- Externally Threaded Fasteners
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product96/ME721-1015X30.PDF
- Screw-End Thread Length:
- 10mm
- Material Grade:
- Class 8.8 Steel
- Form and Design:
- Screw-in End 1.0 X Diameter
- System of Measurement:
- Metric
- Length (Nominal):
- 30mm
- Diameter (Dimension):
- 10mm
- Shop by System of Measurement:
- Metric
- Coating Color:
- Clear
- Coating:
- Zinc Plated
- Diameter (Nominal):
- M10
- Shop by Material:
- Steel
- Standards and Specifications:
- DIN 938
- Diameter (Minimum):
- 9.78mm
- Order:
- Machine Thread Fasteners
- Diameter (Maximum):
- 10mm
- Category:
- Studs, Double-Ended
- Length Overall:
- 40mm
- Thread Length (Nominal):
- 26mm
- Body Length (Nominal):
- 4mm
- Thread Pitch:
- 1.5
- Thread Direction:
- Right-Hand Thread
- POS:
- ME721-1015X30-000300
- Brand:
- Aspen Fasteners
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME721-1015X30.zip
- Material:
- Steel
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME721-1015X30
-
Description
- MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
- MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
- Double-ended studs are used to join parts when a bolt or screw head is not an option.
- Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
- Diameter (Nominal): M10
- Thread Pitch: 1.5
- Diameter (Dimension): 10mm
- Diameter (Minimum): 9.78mm
- Diameter (Maximum): 10mm
- Length (Nominal): 30mm
- Length Overall: 40mm
- Screw-End Thread Length: 10mm
- Thread Length (Nominal): 26mm
- Body Length (Nominal): 4mm
- Category: Studs, Double-Ended
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Screw-in End 1.0 X Diameter
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 8.8 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: DIN 938
-
3D Product View
