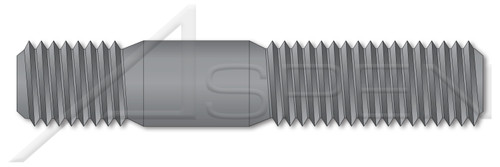

M10-1.5 X 60mm DIN 938, Metric, Studs, Double-Ended, Screw-in End 1.0 X Diameter, Class 5.8 Steel, Plain

M10-1.5 X 60mm DIN 938, Metric, Studs, Double-Ended, Screw-in End 1.0 X Diameter, Class 5.8 Steel, Plain

PART NUMBER:
ME387-1015X60
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
  • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
  • Double-ended studs are used to join parts when a bolt or screw head is not an option.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M10
  • Thread Pitch: 1.5
  • Diameter (Dimension): 10mm
  • Diameter (Minimum): 9.78mm
  • Diameter (Maximum): 10mm
  • Length (Nominal): 60mm
  • Length Overall: 70mm
  • Screw-End Thread Length: 10mm
  • Thread Length (Nominal): 26mm
  • Body Length (Nominal): 34mm
PRODUCT ATTRIBUTES
  • Category: Studs, Double-Ended
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Form and Design: Screw-in End 1.0 X Diameter
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 5.8 Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 938
Material Grade:
Class 5.8 Steel
Shop by Material:
Steel
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME387-1015X60.zip
Diameter (Minimum):
9.78mm
Diameter (Maximum):
10mm
Length (Nominal):
60mm
Material:
Steel
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product39/ME387-1015X60.PDF
POS:
ME387-1015X60-00025,ME387-1015X60-000200
Thread Length (Nominal):
26mm
Diameter (Dimension):
10mm
Order:
Machine Thread Fasteners
Thread Direction:
Right-Hand Thread
Length Overall:
70mm
Screw-End Thread Length:
10mm
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME387-1015X60
Category:
Studs, Double-Ended
Diameter (Nominal):
M10
Standards and Specifications:
DIN 938
Coating:
Uncoated
System of Measurement:
Metric
Thread Pitch:
1.5
Form and Design:
Screw-in End 1.0 X Diameter
Body Length (Nominal):
34mm
Product Class:
Externally Threaded Fasteners
Brand:
Aspen Fasteners(r)
Shop by System of Measurement:
Metric
Copy Link
Print
  • Description
    • MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
    • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
    • Double-ended studs are used to join parts when a bolt or screw head is not an option.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M10
    • Thread Pitch: 1.5
    • Diameter (Dimension): 10mm
    • Diameter (Minimum): 9.78mm
    • Diameter (Maximum): 10mm
    • Length (Nominal): 60mm
    • Length Overall: 70mm
    • Screw-End Thread Length: 10mm
    • Thread Length (Nominal): 26mm
    • Body Length (Nominal): 34mm
    PRODUCT ATTRIBUTES
    • Category: Studs, Double-Ended
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Form and Design: Screw-in End 1.0 X Diameter
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 5.8 Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 938
  • 3D Product View
