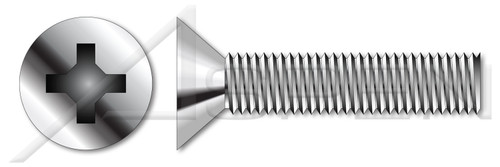

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M10
- Thread Pitch: 1.5
- Diameter (Dimension): 10mm
- Length (Nominal): 60mm
- Thread Length (Nominal): 55mm
- Drive Recess Size: #4
- Drive Recess Width: 9.6mm
- Drive Recess Depth (Minimum): 4.8mm
- Drive Recess Depth (Maximum): 5.3mm
- Head Diameter: 18mm
- Head Diameter (Minimum): 17.57mm
- Head Diameter (Maximum): 18mm
- Head Height, Overall: 5mm
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 90 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 965 / ISO 7046
Product UPC Code:
692559611242
- Brand:
- Aspen Fasteners
- Category:
- Machine Screws
- Coating:
- Uncoated
- Diameter (Dimension):
- 10mm
- Diameter (Nominal):
- M10
- Drive Detail:
- Phillips Type H
- Drive Recess Size:
- #4
- Drive Recess Width:
- 9.6mm
- Drive Style:
- Cruciform Recess Drive
- Head Diameter:
- 18mm
- Head Diameter (Maximum):
- 18mm
- Head Diameter (Minimum):
- 17.57mm
- Head Height, Overall:
- 5mm
- Head Style:
- Flat Countersunk Head
- Head Style Detail:
- 90 Degree Countersink
- Length (Nominal):
- 60mm
- Material:
- Stainless Steel
- Material Grade:
- A2 Stainless Steel
- Order:
- Machine Thread Fasteners
- Origin:
- Origin Undefined
- POS:
- ME202-1015X60-000100
- Product Class:
- Externally Threaded Fasteners
- Standards and Specifications:
- DIN 965 / ISO 7046
- System of Measurement:
- Metric
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Full Thread
- Thread Length (Nominal):
- 55mm
- Thread Pitch:
- 1.5
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME202-1015X60.zip
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME202-1015X60
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product65/ME202-1015X60.PDF
