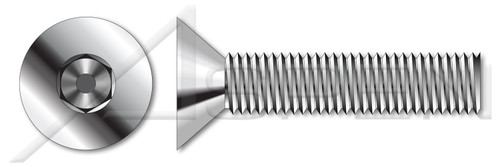

M10-1.5 X 65mm DIN 7991 / ISO 10642, Metric, Flat Head Socket Cap Screws, Full Thread, A4 Stainless Steel

M10-1.5 X 65mm DIN 7991 / ISO 10642, Metric, Flat Head Socket Cap Screws, Full Thread, A4 Stainless Steel

PART NUMBER:
ME300-1015X65-000100
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
  • An internal hex socket drive is also known as an Allen drive.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M10
  • Thread Pitch: 1.5
  • Diameter (Dimension): 10mm
  • Diameter (Minimum): 9.78mm
  • Diameter (Maximum): 10mm
  • Length (Nominal): 65mm
  • Thread Length (Nominal): 59.5mm
  • Drive Recess Size: 6mm
  • Drive Recess Width: 6mm
  • Drive Recess Width (Minimum): 6.02mm
  • Drive Recess Width (Maximum): 6.14mm
  • Drive Recess Depth: 4.4mm
  • Drive Recess Depth (Minimum): 4.1mm
  • Drive Recess Depth (Maximum): 4.4mm
  • Head Diameter: 20mm
  • Head Diameter (Minimum): 19.48mm
  • Head Diameter (Maximum): 20mm
  • Head Height, Overall: 5.5mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Flat Countersunk Head
  • Head Style Detail: 90 Degree Countersink
  • Drive Style: Hex Socket Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 7991 / ISO 10642
Product UPC Code:
692559628325
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Shop by System of Measurement:
Metric
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME300-1015X65
Diameter (Dimension):
10mm
Category:
Socket Head Cap Screws
Shop by Application:
Socket Products
Drive Recess Width:
6mm
Head Diameter (Minimum):
19.48mm
Drive Style:
Hex Socket Drive
Order:
Machine Thread Fasteners
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME300-1015X65.zip
Thread Length (Nominal):
59.5mm
Diameter (Maximum):
10mm
Shop by Material:
Stainless Steel
Brand:
Aspen Fasteners
Thread Length:
Full Thread
Standards and Specifications:
DIN 7991 / ISO 10642
Head Diameter:
20mm
Head Diameter (Maximum):
20mm
Diameter (Minimum):
9.78mm
Diameter (Nominal):
M10
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product67/ME300-1015X65.PDF
Material Grade:
A4 Stainless Steel
Coating:
Uncoated
Length (Nominal):
65mm
Drive Recess Depth:
4.4mm
Head Style Detail:
90 Degree Countersink
System of Measurement:
Metric
Product Class:
Externally Threaded Fasteners
Thread Pitch:
1.5
Origin:
Origin Undefined
Head Style:
Flat Countersunk Head
Head Height, Overall:
5.5mm
Drive Recess Size:
6mm
POS:
ME300-1015X65-000100
Drive Recess Depth (Maximum):
4.4mm
Drive Recess Width (Minimum):
6.02mm
Drive Recess Depth (Minimum):
4.1mm
Drive Recess Width (Maximum):
6.14mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
    • An internal hex socket drive is also known as an Allen drive.
    • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M10
    • Thread Pitch: 1.5
    • Diameter (Dimension): 10mm
    • Diameter (Minimum): 9.78mm
    • Diameter (Maximum): 10mm
    • Length (Nominal): 65mm
    • Thread Length (Nominal): 59.5mm
    • Drive Recess Size: 6mm
    • Drive Recess Width: 6mm
    • Drive Recess Width (Minimum): 6.02mm
    • Drive Recess Width (Maximum): 6.14mm
    • Drive Recess Depth: 4.4mm
    • Drive Recess Depth (Minimum): 4.1mm
    • Drive Recess Depth (Maximum): 4.4mm
    • Head Diameter: 20mm
    • Head Diameter (Minimum): 19.48mm
    • Head Diameter (Maximum): 20mm
    • Head Height, Overall: 5.5mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Flat Countersunk Head
    • Head Style Detail: 90 Degree Countersink
    • Drive Style: Hex Socket Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A4 Stainless Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 7991 / ISO 10642
    Product UPC Code:
    692559628325
