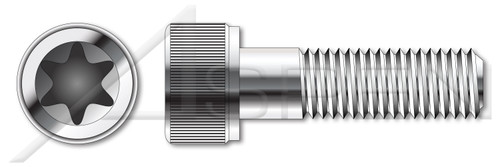

M10-1.5 X 70mm ISO 14579, Metric, 6Lobe Torx(r) Socket Cap Screws, A2 Stainless Steel

PART NUMBER:
ME485-1015X70-000050
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • ISO 14579 formerly referred to the DIN 912 specification.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
  • A 6-lobe recess is also known as a hexalobular internal drive.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M10
  • Thread Pitch: 1.5
  • Diameter (Dimension): 10mm
  • Diameter (Minimum): 9.78mm
  • Diameter (Maximum): 10mm
  • Length (Nominal): 70mm
  • Thread Length: 32mm
  • Recess Size: T50
  • Head Diameter: 16mm
  • Head Diameter (Minimum): 15.73mm
  • Head Diameter (Maximum): 16mm
  • Head Height, Overall: 10mm
  • Head Height, Overall (Minimum): 9.64mm
  • Head Height, Overall (Maximum): 10mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Cylindrical Head
  • Drive Style: 6Lobe Drive
  • Drive Detail: Torx® Generic Alternative
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: ISO 14579
Product UPC Code:
698435885493
Shop by Material:
Stainless Steel
Brand:
Aspen Fasteners
System of Measurement:
Metric
Shop by Application:
Socket Products
Head Height, Overall (Maximum):
10mm
Head Height, Overall (Minimum):
9.64mm
Head Height, Overall:
10mm
Head Diameter (Maximum):
16mm
Head Diameter (Minimum):
15.73mm
Head Diameter:
16mm
Recess Size:
T50
Thread Length:
32mm
Length (Nominal):
70mm
Thread Pitch:
1.5
Diameter (Maximum):
10mm
Diameter (Minimum):
9.78mm
Diameter (Dimension):
10mm
Diameter (Nominal):
M10
Standards and Specifications:
ISO 14579
Coating:
Uncoated
Material Grade:
A2 Stainless Steel
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Socket Head Cap Screws
Head Style:
Cylindrical Head
Shop by System of Measurement:
Metric
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Drive Detail:
Torx(r) Generic Alternative
Drive Style:
6Lobe Drive
  • Description
    • ISO 14579 formerly referred to the DIN 912 specification.
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
    • A 6-lobe recess is also known as a hexalobular internal drive.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Diameter (Nominal): M10
    • Thread Pitch: 1.5
    • Diameter (Dimension): 10mm
    • Diameter (Minimum): 9.78mm
    • Diameter (Maximum): 10mm
    • Length (Nominal): 70mm
    • Thread Length: 32mm
    • Recess Size: T50
    • Head Diameter: 16mm
    • Head Diameter (Minimum): 15.73mm
    • Head Diameter (Maximum): 16mm
    • Head Height, Overall: 10mm
    • Head Height, Overall (Minimum): 9.64mm
    • Head Height, Overall (Maximum): 10mm
    • Product Class: Externally Threaded Fasteners
    • Order: Machine Thread Fasteners
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Cylindrical Head
    • Drive Style: 6Lobe Drive
    • Drive Detail: Torx® Generic Alternative
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: ISO 14579
    Product UPC Code:
    698435885493
