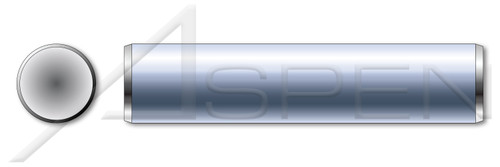

- Using receiving holes, dowel pins use friction to hold parts of an assembly together.
- Can be used as pivot pins, hinges, or locating pins.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M10
- Diameter (Dimension): 10mm
- Diameter (Minimum): 10.006mm
- Diameter (Maximum): 10.015mm
- Length (Nominal): 32mm
- Ball End Height: 1.5mm
- Product Class: Pins and Wireforms
- Order: Dowel Pins
- Category: Solid Dowel Pins
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Rounded Ends
- Tolerance: Tolerance m6
- Material: Stainless Steel
- Material Grade: AISI 303 Stainless Steel (18-8)
- Material Processes: Unhardened
- Coating: Uncoated
- Standards and Specifications: DIN 7 Type A
Product UPC Code:
692559595283
- Diameter (Nominal):
- M10
- Shop by System of Measurement:
- Metric
- Shop by Material:
- Stainless Steel
- Length (Nominal):
- 32mm
- Product Class:
- Pins and Wireforms
- Coating:
- Uncoated
- Ball End Height:
- 1.5mm
- Material Processes:
- Unhardened
- Standards and Specifications:
- DIN 7 Type A
- Diameter (Maximum):
- 10.015mm
- Diameter (Minimum):
- 10.006mm
- Diameter (Dimension):
- 10mm
- Order:
- Dowel Pins
- Category:
- Solid Dowel Pins
- System of Measurement:
- Metric
- Brand:
- Aspen Fasteners
- Form and Design:
- Rounded Ends
- Tolerance:
- Tolerance m6
- Material:
- Stainless Steel
- Material Grade:
- AISI 303 Stainless Steel (18-8)
