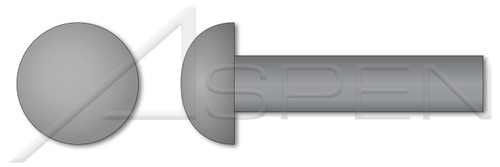

M10 X 50mm DIN 660 / ISO 1051, Metric, Solid Rivets, Round Head, Steel

M10 X 50mm DIN 660 / ISO 1051, Metric, Solid Rivets, Round Head, Steel

PART NUMBER:
ME391-10X50
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Solid rivets are simply a shaft and head designed to be deformed with a hammer or rivet gun.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M10
  • Diameter (Dimension): 10mm
  • Length (Nominal): 50mm
  • Unthreaded Shank Length: 50mm
  • Head Diameter: 16mm
  • Head Height, Overall: 6.5mm
PRODUCT ATTRIBUTES
  • Category: Solid Rivets
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Round Head
  • Material: Steel
  • Material Grade: Low Carbon Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 660 / ISO 1051
Brand:
Aspen Fasteners(r)
Order:
Rivets
Head Style:
Round Head
Material Grade:
Low Carbon Steel
Diameter (Dimension):
10mm
Head Diameter:
16mm
Coating:
Uncoated
Product Class:
Rivets
Category:
Solid Rivets
Head Height, Overall:
6.5mm
Diameter (Nominal):
M10
Shop by Material:
Steel
Shop by System of Measurement:
Metric
Material:
Steel
Length (Nominal):
50mm
System of Measurement:
Metric
Standards and Specifications:
DIN 660 / ISO 1051
  • Description
    • Solid rivets are simply a shaft and head designed to be deformed with a hammer or rivet gun.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M10
    • Diameter (Dimension): 10mm
    • Length (Nominal): 50mm
    • Unthreaded Shank Length: 50mm
    • Head Diameter: 16mm
    • Head Height, Overall: 6.5mm
    PRODUCT ATTRIBUTES
    • Category: Solid Rivets
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Round Head
    • Material: Steel
    • Material Grade: Low Carbon Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 660 / ISO 1051

Contact us for availability information on part number ME391-10X50. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
