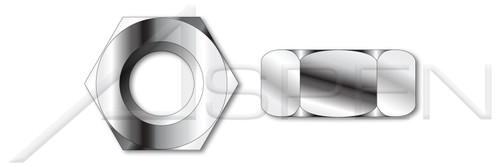

M12-1.0 DIN 934 / ISO 4032, Metric, Hex Finished Nuts, A2 Stainless Steel

PART NUMBER:
ME013-1210X10X19-000200
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Hex finished nuts are considered the most commonly used hex nuts.
  • DIN 934 hex nuts are the most commonly used metric hex nuts.
  • Also known as regular hex nuts.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M12
  • Thread Pitch: 1.0
  • Diameter (Dimension): 12mm
  • Thread Length (Nominal): 10mm
  • Across Flats (Basic): 19mm
  • Across Flats (Minimum): 18.67mm
  • Across Flats (Maximum): 19mm
  • Height (Basic): 10mm
  • Height (Minimum): 9.64mm
  • Height (Maximum): 10mm
  • Washer Face Diameter (Minimum): 17.2mm
PRODUCT ATTRIBUTES
  • Category: Hex Finished Nuts
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Drive Style: External Hex Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 934 / ISO 4032
Product UPC Code:
692559582955
Order:
Nuts
Height (Maximum):
10mm
Height (Basic):
10mm
Drive Style:
External Hex Drive
Coating:
Uncoated
Thread Pitch:
1.0
Shop by System of Measurement:
Metric
Diameter (Dimension):
12mm
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product37/ME013-1210X10X19.PDF
Product Class:
Internally Threaded Fasteners
System of Measurement:
Metric
Thread Length:
Full Thread
Brand:
Aspen Fasteners
Thread Length (Nominal):
10mm
Across Flats (Minimum):
18.67mm
POS:
ME013-1210X10X19-000200
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME013-1210X10X19
Height (Minimum):
9.64mm
Diameter (Nominal):
M12
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME013-1210X10X19.zip
Category:
Hex Finished Nuts
Shop by Material:
Stainless Steel
Standards and Specifications:
DIN 934 / ISO 4032
Across Flats (Maximum):
19mm
Across Flats (Basic):
19mm
Material Grade:
A2 Stainless Steel
  • Description
    • Hex finished nuts are considered the most commonly used hex nuts.
    • DIN 934 hex nuts are the most commonly used metric hex nuts.
    • Also known as regular hex nuts.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M12
    • Thread Pitch: 1.0
    • Diameter (Dimension): 12mm
    • Thread Length (Nominal): 10mm
    • Across Flats (Basic): 19mm
    • Across Flats (Minimum): 18.67mm
    • Across Flats (Maximum): 19mm
    • Height (Basic): 10mm
    • Height (Minimum): 9.64mm
    • Height (Maximum): 10mm
    • Washer Face Diameter (Minimum): 17.2mm
    PRODUCT ATTRIBUTES
    • Category: Hex Finished Nuts
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Drive Style: External Hex Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 934 / ISO 4032
    Product UPC Code:
    692559582955
  • 3D Product View

Contact us for availability information on part number ME013-1210X10X19-000200. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
