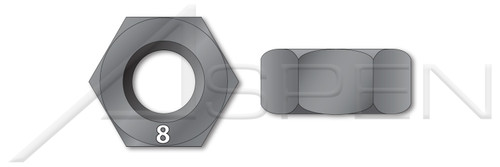

- Hex finished nuts are considered the most commonly used hex nuts.
- DIN 934 hex nuts are the most commonly used metric hex nuts.
- Also known as regular hex nuts.
- Class 8 nuts are designed to be used with screws and bolts of property class 8.8 or lower.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M12
- Thread Pitch: 1.5
- Diameter (Dimension): 12mm
- Thread Length (Nominal): 10mm
- Across Flats (Basic): 19mm
- Across Flats (Minimum): 18.67mm
- Across Flats (Maximum): 19mm
- Height (Basic): 10mm
- Height (Minimum): 9.64mm
- Height (Maximum): 10mm
- Washer Face Diameter (Minimum): 17.2mm
PRODUCT ATTRIBUTES- Category: Hex Finished Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 8 Steel
- Coating: Uncoated
- Standards and Specifications: DIN 934 / ISO 4032
Product UPC Code:
698435173613
- Coating:
- Uncoated
- Height (Maximum):
- 10mm
- Material Grade:
- Class 8 Steel
- Height (Basic):
- 10mm
- POS:
- ME066-1215-00150
- Thread Direction:
- Right-Hand Thread
- Drive Style:
- External Hex Drive
- Order:
- Nuts
- Material:
- Steel
- Diameter (Nominal):
- M12
- Across Flats (Minimum):
- 18.67mm
- Product Class:
- Internally Threaded Fasteners
- Shop by System of Measurement:
- Metric
- Standards and Specifications:
- DIN 934 / ISO 4032
- Brand:
- Aspen Fasteners
- Height (Minimum):
- 9.64mm
- Across Flats (Maximum):
- 19mm
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product37/ME066-1215.PDF
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME066-1215
- Thread Length:
- Full Thread
- Category:
- Hex Finished Nuts
- Shop by Material:
- Steel
- Thread Length (Nominal):
- 10mm
- Thread Pitch:
- 1.5
- Diameter (Dimension):
- 12mm
- Across Flats (Basic):
- 19mm
- System of Measurement:
- Metric
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME066-1215.zip
