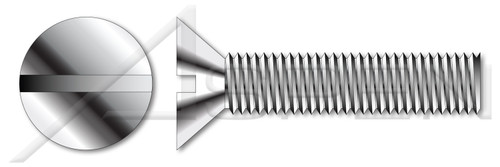

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M12
- Thread Pitch: 1.75
- Diameter (Dimension): 12mm
- Length (Nominal): 130mm
- Thread Length (Nominal): 124mm
- Head Diameter: 22mm
- Head Diameter (Minimum): 21.48mm
- Head Diameter (Maximum): 21mm
- Head Height, Overall: 6mm
- Slot Depth (Minimum): 2.4mm
- Slot Depth (Maximum): 3mm
- Slot Width (Nominal): 3mm
- Slot Width (Minimum): 3.06mm
- Slot Width (Maximum): 3.31mm
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 90 Degree Countersink
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 963 / ISO 2009
Product UPC Code:
698435859418
- System of Measurement:
- Metric
- Slot Width (Minimum):
- 3.06mm
- Standards and Specifications:
- DIN 963 / ISO 2009
- Coating:
- Uncoated
- Head Style Detail:
- 90 Degree Countersink
- Diameter (Dimension):
- 12mm
- Thread Length (Nominal):
- 124mm
- Slot Width (Nominal):
- 3mm
- Brand:
- Aspen Fasteners
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME195-12175X130.zip
- Order:
- Machine Thread Fasteners
- Thread Pitch:
- 1.75
- Slot Depth (Maximum):
- 3mm
- Head Diameter (Minimum):
- 21.48mm
- Slot Width (Maximum):
- 3.31mm
- Head Diameter:
- 22mm
- Origin:
- Origin Undefined
- Thread Direction:
- Right-Hand Thread
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product86/ME195-12175X130.PDF
- Length (Nominal):
- 130mm
- POS:
- ME195-12175X130-000050
- Category:
- Machine Screws
- Diameter (Nominal):
- M12
- Drive Style:
- Slotted Drive
- Head Style:
- Flat Countersunk Head
- Slot Depth (Minimum):
- 2.4mm
- Product Class:
- Externally Threaded Fasteners
- Head Diameter (Maximum):
- 21mm
- Material Grade:
- A2 Stainless Steel
- Head Height, Overall:
- 6mm
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME195-12175X130
- Material:
- Stainless Steel
- Thread Length:
- Full Thread
