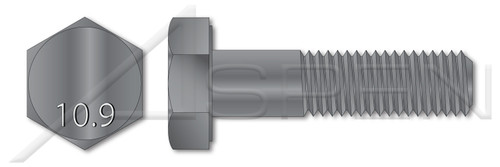

M12-1.75 X 50mm DIN 6914 / ISO 7412 / EN 14399-4, Metric, Heavy Structural Hex Bolts, Class 10.9 Steel, Plain

PART NUMBER:
ME711-12175X50-000040
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Heavy hex structural bolts are designed to withstand the load of a steel-to-steel connection.
  • Commonly used in structural steel joint in construction and building applications.
  • Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
  • The washer face under the head provides a precision bearing surface.
  • The chamfered point improves engagement with a nut or pre-tapped hole.
  • Diameter (Nominal): M12
  • Thread Pitch: 1.75
  • Diameter (Dimension): 12mm
  • Diameter (Minimum): 11.3mm
  • Diameter (Maximum): 12.7mm
  • Length (Nominal): 50mm
  • Thread Length (Nominal): 23mm
  • Across Flats (Basic): 22mm
  • Across Flats (Minimum): 21.16mm
  • Across Flats (Maximum): 22mm
  • Head Height, Overall: 8mm
  • Head Height, Overall (Minimum): 7.55mm
  • Head Height, Overall (Maximum): 8.45mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Hex Bolts, Heavy Structural
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Hex Head
  • Head Style Detail: Washer Face
  • Drive Style: External Hex Drive
  • Pitch: Coarse Thread
  • Thread Length: Part Thread
  • Thread Direction: Right-Hand Thread
  • Point: Chamfered Point
  • Material: Steel
  • Material Grade: Class 10.9 Steel
  • Material Processes: Hardened
  • Coating: Uncoated
  • Standards and Specifications: DIN 6914 / ISO 7412 / EN 14399-4
Across Flats (Maximum):
22mm
Coating:
Uncoated
Head Height, Overall (Maximum):
8.45mm
Head Height, Overall (Minimum):
7.55mm
Material:
Steel
Thread Length (Nominal):
23mm
Length (Nominal):
50mm
Drive Style:
External Hex Drive
Diameter (Minimum):
11.3mm
Pitch:
Coarse Thread
Shop by System of Measurement:
Metric
Category:
Hex Bolts, Heavy Structural
Thread Direction:
Right-Hand Thread
Head Height, Overall:
8mm
Across Flats (Basic):
22mm
Across Flats (Minimum):
21.16mm
Brand:
Aspen Fasteners
Thread Length:
Part Thread
Thread Pitch:
1.75
Diameter (Nominal):
M12
Material Grade:
Class 10.9 Steel
Diameter (Dimension):
12mm
Head Style Detail:
Washer Face
Head Style:
Hex Head
Order:
Machine Thread Fasteners
System of Measurement:
Metric
Material Processes:
Hardened
Point:
Chamfered Point
Shop by Material:
Steel
Product Class:
Externally Threaded Fasteners
Standards and Specifications:
DIN 6914 / ISO 7412 / EN 14399-4
Diameter (Maximum):
12.7mm
  • Description
    • Heavy hex structural bolts are designed to withstand the load of a steel-to-steel connection.
    • Commonly used in structural steel joint in construction and building applications.
    • Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
    • The washer face under the head provides a precision bearing surface.
    • The chamfered point improves engagement with a nut or pre-tapped hole.
    • Diameter (Nominal): M12
    • Thread Pitch: 1.75
    • Diameter (Dimension): 12mm
    • Diameter (Minimum): 11.3mm
    • Diameter (Maximum): 12.7mm
    • Length (Nominal): 50mm
    • Thread Length (Nominal): 23mm
    • Across Flats (Basic): 22mm
    • Across Flats (Minimum): 21.16mm
    • Across Flats (Maximum): 22mm
    • Head Height, Overall: 8mm
    • Head Height, Overall (Minimum): 7.55mm
    • Head Height, Overall (Maximum): 8.45mm
    • Product Class: Externally Threaded Fasteners
    • Order: Machine Thread Fasteners
    • Category: Hex Bolts, Heavy Structural
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Hex Head
    • Head Style Detail: Washer Face
    • Drive Style: External Hex Drive
    • Pitch: Coarse Thread
    • Thread Length: Part Thread
    • Thread Direction: Right-Hand Thread
    • Point: Chamfered Point
    • Material: Steel
    • Material Grade: Class 10.9 Steel
    • Material Processes: Hardened
    • Coating: Uncoated
    • Standards and Specifications: DIN 6914 / ISO 7412 / EN 14399-4

Contact us for availability information on part number ME711-12175X50-000040. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
