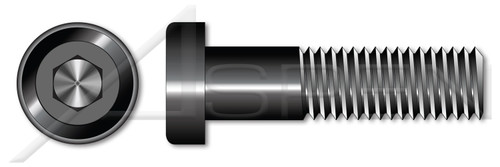

M12-1.75 X 70mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, Class 8.8 Steel, Plain

M12-1.75 X 70mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, Class 8.8 Steel, Plain

PART NUMBER:
ME339-12175X70-00020
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
  • An internal hex socket drive is also known as an Allen drive.
  • Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M12
  • Thread Pitch: 1.75
  • Diameter (Dimension): 12mm
  • Diameter (Minimum): 11.73mm
  • Diameter (Maximum): 12mm
  • Length (Nominal): 70mm
  • Thread Length (Nominal): 30mm
  • Drive Recess Size: 8mm
  • Drive Recess Width (Minimum): 8.03mm
  • Drive Recess Width (Maximum): 8.18mm
  • Drive Recess Depth: 5mm
  • Drive Recess Depth (Minimum): 4.85mm
  • Drive Recess Depth (Maximum): 5.15mm
  • Head Diameter: 18mm
  • Head Diameter (Minimum): 17.73mm
  • Head Diameter (Maximum): 18mm
  • Head Height, Overall: 7mm
  • Head Height, Overall (Minimum): 6.78mm
  • Head Height, Overall (Maximum): 7mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Low Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 8.8 Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 7984
Product UPC Code:
692559889160
Diameter (Minimum):
11.73mm
Diameter (Dimension):
12mm
Diameter (Nominal):
M12
Standards and Specifications:
DIN 7984
Coating:
Uncoated
Material Grade:
Class 8.8 Steel
Drive Style:
Hex Socket Drive
Head Style:
Low Cylindrical Head
Brand:
Aspen Fasteners
System of Measurement:
Metric
Order:
Machine Thread Fasteners
Shop by Application:
Socket Products
Shop by Material:
Steel
Shop by System of Measurement:
Metric
Product Class:
Externally Threaded Fasteners
Material:
Steel
Thread Direction:
Right-Hand Thread
Category:
Socket Head Cap Screws
Head Height, Overall (Maximum):
7mm
Head Height, Overall (Minimum):
6.78mm
Head Height, Overall:
7mm
Head Diameter (Maximum):
18mm
Head Diameter (Minimum):
17.73mm
Head Diameter:
18mm
Recess Size:
8mm
Thread Length:
30mm
Length (Nominal):
70mm
Thread Pitch:
1.75
Diameter (Maximum):
12mm
POS:
ME339-12175X70-00020
Brand:
Aspen Fasteners(r)
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME339-12175X70
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product67/ME339-12175X70.PDF
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME339-12175X70.zip
Drive Recess Width (Maximum):
8.18mm
Origin:
Origin Undefined
Thread Length (Nominal):
30mm
Drive Recess Width (Minimum):
8.03mm
Drive Recess Depth (Minimum):
4.85mm
Drive Recess Depth (Maximum):
5.15mm
Drive Recess Depth:
5mm
Drive Recess Size:
8mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
    • An internal hex socket drive is also known as an Allen drive.
    • Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M12
    • Thread Pitch: 1.75
    • Diameter (Dimension): 12mm
    • Diameter (Minimum): 11.73mm
    • Diameter (Maximum): 12mm
    • Length (Nominal): 70mm
    • Thread Length (Nominal): 30mm
    • Drive Recess Size: 8mm
    • Drive Recess Width (Minimum): 8.03mm
    • Drive Recess Width (Maximum): 8.18mm
    • Drive Recess Depth: 5mm
    • Drive Recess Depth (Minimum): 4.85mm
    • Drive Recess Depth (Maximum): 5.15mm
    • Head Diameter: 18mm
    • Head Diameter (Minimum): 17.73mm
    • Head Diameter (Maximum): 18mm
    • Head Height, Overall: 7mm
    • Head Height, Overall (Minimum): 6.78mm
    • Head Height, Overall (Maximum): 7mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Low Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 8.8 Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 7984
    Product UPC Code:
    692559889160
  • 3D Product View

Contact us for availability information on part number ME339-12175X70-00020. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
