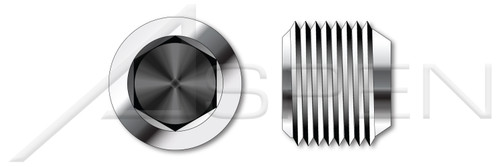

- Threaded pipe plugs are designed to close the ends of internally threaded pipes and fittings.
- Also known as Threaded Pipe Fittings or Threaded Screw Plugs.
- An internal hex socket drive is also known as an Allen drive.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M16
- Thread Pitch: 1.5
- Diameter (Dimension): 16mm
- Length (Nominal): 10mm
- Thread Length (Nominal): 10mm
- Thread Length (Minimum): 9.55mm
- Thread Length (Maximum): 10.45mm
- Drive Size: 8mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Pipe Plugs
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: Hex Socket Drive
- Threading: Conical Tapered Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 906
- Product Class:
- Externally Threaded Fasteners
- Shop by System of Measurement:
- Metric
- Shop by Material:
- Stainless Steel
- Shop by Application:
- Socket Products
- Order:
- Machine Thread Fasteners
- Category:
- Pipe Plugs
- System of Measurement:
- Metric
- Brand:
- Aspen Fasteners(r)
- Drive Style:
- Hex Socket Drive
- Threading:
- Conical Tapered Thread
- Thread Direction:
- Right-Hand Thread
- Material:
- Stainless Steel
- Material Grade:
- A4 Stainless Steel
- Coating:
- Uncoated
- Standards and Specifications:
- DIN 906
- Diameter (Nominal):
- M16
- Diameter (Dimension):
- 16mm
- Thread Pitch:
- 1.5
- Length (Nominal):
- 10mm
- Thread Length (Nominal):
- 10mm
- Recess Size:
- 8mm
- Thread Length (Minimum):
- 9.55mm
- Thread Length (Maximum):
- 10.45mm
-
Description
- Threaded pipe plugs are designed to close the ends of internally threaded pipes and fittings.
- Also known as Threaded Pipe Fittings or Threaded Screw Plugs.
- An internal hex socket drive is also known as an Allen drive.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M16
- Thread Pitch: 1.5
- Diameter (Dimension): 16mm
- Length (Nominal): 10mm
- Thread Length (Nominal): 10mm
- Thread Length (Minimum): 9.55mm
- Thread Length (Maximum): 10.45mm
- Drive Size: 8mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Pipe Plugs
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: Hex Socket Drive
- Threading: Conical Tapered Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 906
