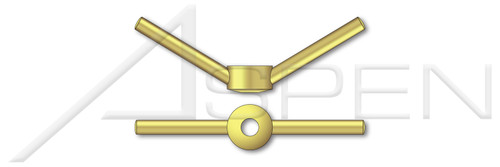

M16-2.0 DIN 80701, Metric, Butterfly Toggle Nuts, Brass

PART NUMBER:
ME100-1620-000002
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Functionally similar to a wing nut, a butterfly toggle nut is often used in ship building.
  • Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
  • Diameter (Nominal): M16
  • Thread Pitch: 2.0
  • Diameter (Dimension): 16mm
  • Thread Length: 20mm
  • Wing Spread: 200mm
  • Base Height: 20mm
  • Base Width: 30mm
  • Thickness (Nominal): 12mm
  • Height (Basic): 65mm
  • Product Class: Internally Threaded Fasteners
  • Order: Nuts
  • Category: Toggle Nuts (Butterfly)
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Drive Style: Thumb Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Brass
  • Material Grade: Standard Commercial Grade
  • Coating: Uncoated
  • Standards and Specifications: DIN 80701
Product UPC Code:
698435919945
Standards and Specifications:
DIN 80701
Diameter (Nominal):
M16
Diameter (Dimension):
16mm
Shop by System of Measurement:
Metric
Thread Pitch:
2.0
Thread Length:
20mm
Thickness (Nominal):
12mm
Height (Basic):
65mm
Wing Spread:
200mm
Base Width:
30mm
Base Height:
20mm
Shop by Material:
Brass
Product Class:
Internally Threaded Fasteners
Order:
Nuts
Category:
Toggle Nuts (Butterfly)
System of Measurement:
Metric
Brand:
Aspen Fasteners
Drive Style:
Thumb Drive
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
Material:
Brass
Material Grade:
Standard Commercial Grade
Coating:
Uncoated
  • Description
    • Functionally similar to a wing nut, a butterfly toggle nut is often used in ship building.
    • Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
    • Diameter (Nominal): M16
    • Thread Pitch: 2.0
    • Diameter (Dimension): 16mm
    • Thread Length: 20mm
    • Wing Spread: 200mm
    • Base Height: 20mm
    • Base Width: 30mm
    • Thickness (Nominal): 12mm
    • Height (Basic): 65mm
    • Product Class: Internally Threaded Fasteners
    • Order: Nuts
    • Category: Toggle Nuts (Butterfly)
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Drive Style: Thumb Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Brass
    • Material Grade: Standard Commercial Grade
    • Coating: Uncoated
    • Standards and Specifications: DIN 80701
    Product UPC Code:
    698435919945
