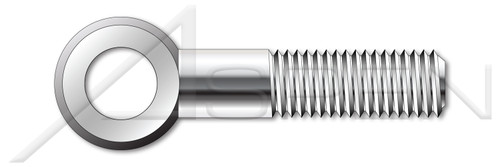

- Precision swing eye bolts are driveless fasteners with a hole in the head.
- Precision machined unthreaded round hole called the "eye" allows for pin or bearing to be inserted.
- Can be used as a hinge point.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M16
- Thread Pitch: 2.0
- Diameter (Dimension): 16mm
- Length (Nominal): 130mm
- Thread Length: 44mm
- Inside Diameter (Nominal): 16mm
- Inside Diameter (Minimum): 16mm
- Inside Diameter (Maximum): 16.043mm
- Head Diameter: 32mm
- Head Diameter (Minimum): 31.38mm
- Head Diameter (Maximum): 32mm
- Head Height, Overall: 32mm
- Head Height, Overall (Minimum): 31.38mm
- Head Height, Overall (Maximum): 32mm
- Head Width (Minimum): 16.82mm
- Head Width (Maximum): 17mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Eye Bolts (Precision Swing)
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Spherical Eye Head
- Thread Length: Part Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 444 Type B
- Diameter (Nominal):
- M16
- Inside Diameter (Maximum):
- 16.043mm
- Head Diameter:
- 32mm
- Head Diameter (Minimum):
- 31.38mm
- Head Diameter (Maximum):
- 32mm
- Head Height, Overall:
- 32mm
- Head Height, Overall (Minimum):
- 31.38mm
- Head Height, Overall (Maximum):
- 32mm
- Standards and Specifications:
- DIN 444 Type B
- Coating:
- Uncoated
- Material Grade:
- A2 Stainless Steel
- Material:
- Stainless Steel
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Part Thread
- Head Style:
- Spherical Eye Head
- Brand:
- Aspen Fasteners(r)
- System of Measurement:
- Metric
- Category:
- Eye Bolts (Precision Swing)
- Order:
- Machine Thread Fasteners
- Product Class:
- Externally Threaded Fasteners
- Shop by Material:
- Stainless Steel
- Shop by System of Measurement:
- Metric
- Diameter (Dimension):
- 16mm
- Thread Pitch:
- 2.0
- Length (Nominal):
- 130mm
- Thread Length:
- 44mm
- Inside Diameter (Nominal):
- 16mm
- Inside Diameter (Minimum):
- 16mm
-
Description
- Precision swing eye bolts are driveless fasteners with a hole in the head.
- Precision machined unthreaded round hole called the "eye" allows for pin or bearing to be inserted.
- Can be used as a hinge point.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M16
- Thread Pitch: 2.0
- Diameter (Dimension): 16mm
- Length (Nominal): 130mm
- Thread Length: 44mm
- Inside Diameter (Nominal): 16mm
- Inside Diameter (Minimum): 16mm
- Inside Diameter (Maximum): 16.043mm
- Head Diameter: 32mm
- Head Diameter (Minimum): 31.38mm
- Head Diameter (Maximum): 32mm
- Head Height, Overall: 32mm
- Head Height, Overall (Minimum): 31.38mm
- Head Height, Overall (Maximum): 32mm
- Head Width (Minimum): 16.82mm
- Head Width (Maximum): 17mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Eye Bolts (Precision Swing)
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Spherical Eye Head
- Thread Length: Part Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 444 Type B
